Introduction

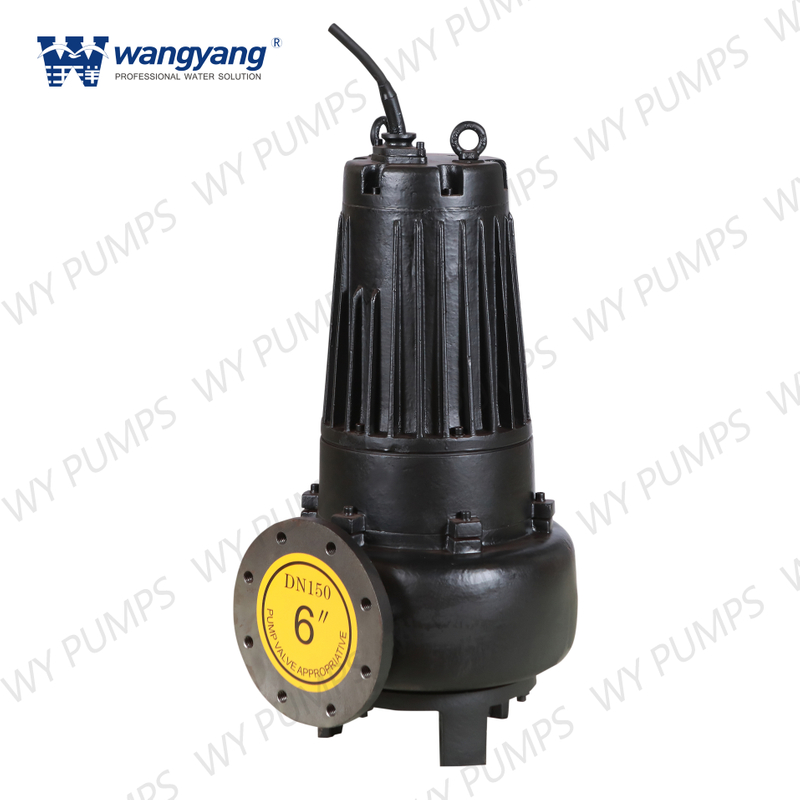

AS/AV series submersible sewage pump is based on the advanced technology of domestic and foreign similar products. We have many years of experiences in design and manufacture. After several rounds of technical innovation, it has become more functionally reliable and sophisticated. Its design has been streamlined with chart playing and it has advantages such as high efficiency, winding protection, no clogging, high reliability, automatic coupling, automatic control and automatic protection. It is versatile and has a large working scope. The pump and the motor are sharing the same shafts to form a compact structure. So it is easy to maintain. Upon customer's request, various submersible sewage pumps are available to meet voltage requirements.

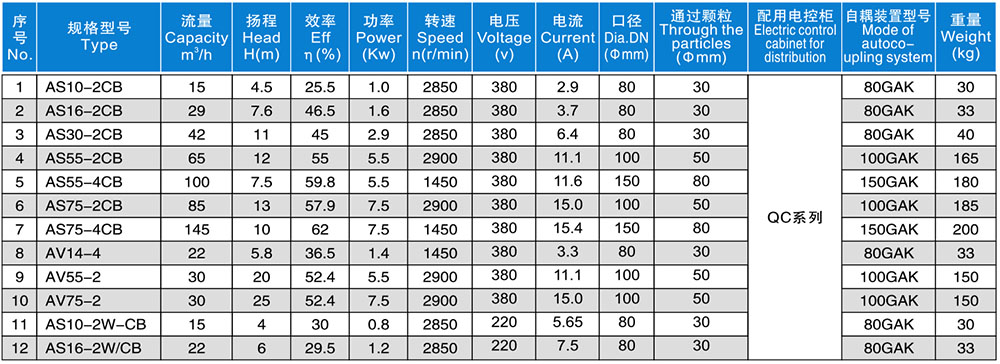

Parameter
Outlet Diameter | 50-600mm |
Flow Rate | 7-6000m3/h |
Head | 5-60m |
Power | 0.75-450kw |
Voltage | 380V(660V, 3kV, 6kV, and 10kV are also available upon customers' demand) |

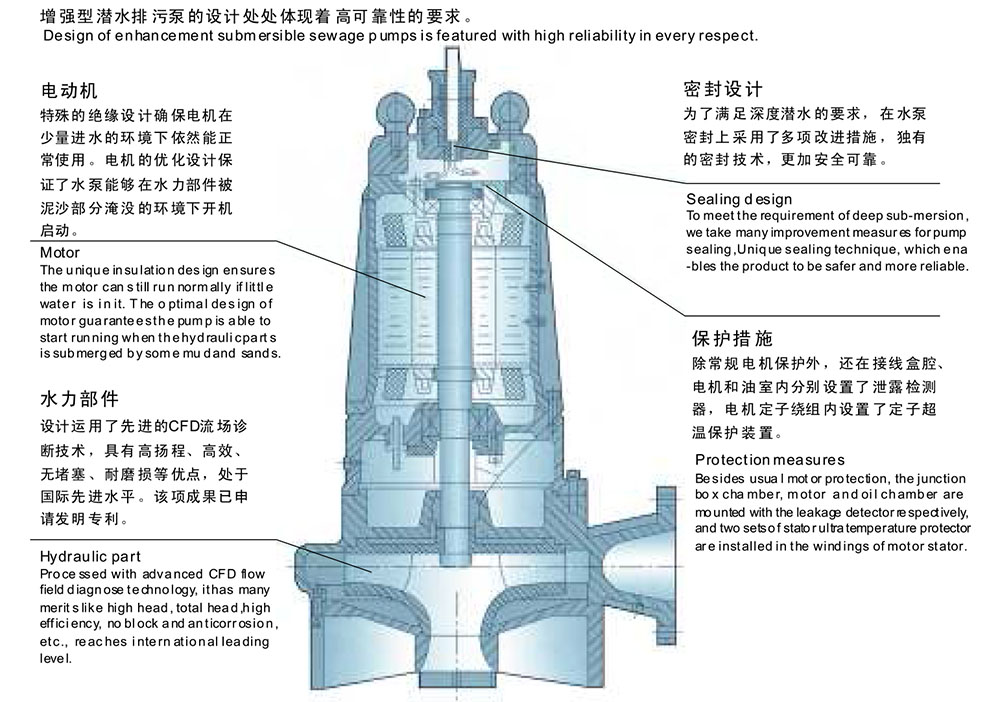

Features of Structure

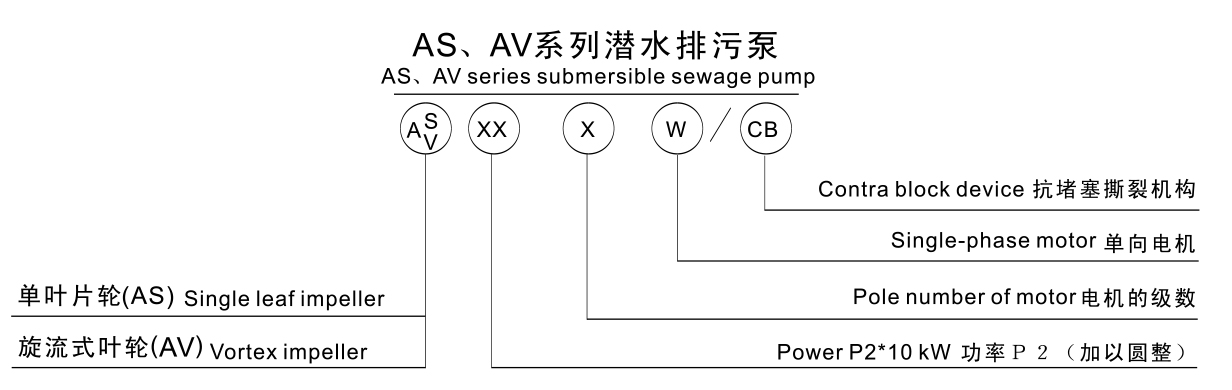

Model Description
