H Series Right Angle Pump Drive

Availability:
Quantity:
sharethis sharing button

Features and Application

H Series Right Angle Pump Drive can transmit the prime mover horizontal axis power to the vertical pump axis, which is economical, efficient, space-saving and suitable for various climatic conditions.


H Series Right Angle Pump Drive is directly matched with diesel engine, horizontal motor or steam turbine, which can be used for transmission and speed change of various vertical pumps such as long-axis pump, deep well pump, diagonal flow pump, axial flow pump and submerged pump as well as the right angle transmission and speed change of various vertical axis machines. The H-series right angle gearbox can directly support the axial forces that may exist in the machine and simplify the structure of the machine. Can be widely used in farmland irrigation, water conservancy engineering, municipal engineering, metallurgical mine, petrochemical engineering, fire control and marine engineering, etc.


A variety of models and transmission ratios can meet the requirements of high and low speed prime movers and pumps.


Speed Grading

Table 1

Vertical axis speed

(r/min)

Horizontal axis speed (r/min)

Speed increase ratio ——Active: slave

1:2

4:7

2:3

3:4

4:5

5:6

10:11

1:1

490

245

280

327

368

392

408

445

490

580

290

331

387

435

464

483

527

580

690

345

394

460

518

552

575

627

690

720

360

411

480

540

576

600

655

720

860

430

491

573

645

688

717

782

860

960

480

549

640

720

768

800

873

960

1160

580

663

773

870

928

967

1055

1160

1460

730

843

973

1095

1168

1217

1327

1460

1760

880

1006

1173

1320

1408

1467

1600

1760

3460*

1730

1977

2307

2595

2768

2883

3145

3460



Vertical axis speed

(r/min)

Horizontal axis speed (r/min)

Speed decrease ratio -- Active: slave

11:10

6:5

5:4

4:3

3:2

7:4

2:1

9:4

5:2

3:1

4:1

490

539

588

613

653

735

858

980

1103

1225

1470

1960

580

638

696

725

733

870

1015

1160

1305

1450

1740

2320

690

759

828

863

920

1035

1208

1380

1553

1725

2070

720

792

864

900

960

1080

1260

1440

1620

1800

2160

860

946

1032

1075

1147

1290

1505

1720

1935

2150

2580

960

1056

1152

1200

1280

1440

1680

1920

2160

2400

2880

1160

1276

1392

1450

1547

1740

2030

2320

2610

2900

3480

1460

1606

1752

1825

1947

2190

2555

2920

3285

3650

1760

1936

2112

2200

2347

2640

3080

3520

* Please consult our company

Selection of Parameter

When it is used to drive deep well pumps, the parameters in Table 2 already contain suitable load factors, which can be directly selected by the user. For other situations, please consult our company.

The American Gear Manufacturing Association stipulates that the spiral bevel gear load factor shall be greater than or equal to 1.5, and the load factor values shall be different for different applications. In addition, other factors affecting the rated power of the gearbox include bearing, axis, temperature and lubrication, which have been taken into account in Table 2.

The selection of oil cooling method should take factors such as thrust, speed, ventilation environment and operating conditions into account. For a gearbox equipped with an oil cooler, it shall be operated with a coolant of about 20 ℃.


Selection of Thrust Bearing Form

The upper part of the vertical axis (hollow axis) is made of bearings that can withstand large thrusts, which can meet the requirements of most pumps and different heads. In most cases, the thrust of the gearbox itself is mainly used to reduce the load that the pump acts on the "thrust bearing" of the vertical axis, so there is a minimum downward thrust to prevent the vertical axis "thrust bearing" from separating.

Unless otherwise noted, H-series gearbox is generally arranged in the DT format shown in the figure, corresponding to the "standard" thrust shown in Table 2.

If there is insufficient "upward thrust" or "downward thrust", it can be arranged in the DF format shown in the figure, corresponding to the "two-way" thrust shown in Table 2.

If the "downward thrust" exceeds the standard thrust value shown in Table 2, it can be selected by heavy type, corresponding to the DT/DT arrangement format shown in the figure.

The heavy type can also be arranged according to the DF/DT format shown in the figure. At this time, the downward thrust corresponds to the "standard, thrust value" in Table 2, and the upward thrust is selected according to "two-way" in Table 2.

Table 2 Thrust value

Model

Vertical axis speed (r/min)

Power

HP/kW

Standard

Heavy type

Two-way

Single downward thrust (N)

Maximum downward or upward thrust(N)

Minimum

Maximum

Minimum

Maximum

H80

860

960

1160

1460

1760

46/34

50/37

58/43

69/51

80/60

9120

8980

8680

8000

7560

32900

31540

30700

28500

26700

6675

43200

42100

40500

36900

35600

19600

19100

18250

16910

13350

H110

860

960

1160

1460

1760

63/46

69/51

80/60

95/70

110/81

10450

9920

9790

9120

8450

32900

31540

30700

28500

26700

8000

43200

42100

40500

37800

35600

19600

19100

18250

16910

13350

H125

720

63/46

12900

37800

12460

54300

22700

860

72/53

12000

35600

11800

51600

21400

960

79/58

11780

34790

11560

50400

21000

1160

90/66

11350

33400

11100

48000

20000

1460

108/79

10680

31150

10200

44900

18700

1760

125/92

9790

28900

9800

42300

17400





Model

Vertical axis speed

(r/min)

Power HP/kW

Standard

Heavy type

Two-way

Single downward thrust (N)

Maximum downward or upward thrust

Minimum

Maximum

Minimum

Maximum

(N)

H150

720

75/55

13570

43600

14000

66750

26250

860

87/64

13130

41830

13350

63630

24900

960

95/70

12890

40120

13000

62120

24100

1160

108/79

12240

39160

12460

59180

23600

1460

129/95

11570

36930

11570

55620

22250

1760

150/110

11120

35600

11120

53400

21360

H200

720

100/73.5

16000

53400

15130

72085

30000

860

116/85

14680

48950

14240

68080

28000

960

126/93

14100

47680

13920

65610

27000

1160

144/106

13570

45400

13350

63630

25360

1460

172/126.5

12680

42270

12680

60000

23580

1760

200/147

12000

40000

12000

57850

22690

H300

720

150/110

16700

60700

16700

83660

36500

860

174/128

15800

57850

16000

79650

34700

960

189/139

15500

56100

15600

77210

33200

1160

216/159

14900

54300

14900

74310

32500

1460

258/190

14000

51200

14000

69860

30700

1760

300/220

13350

48950

13350

66750

29400

H350

720

175/129

18900

72530

18700

89000

43600

860

203/149

18000

68970

17800

84500

41400

960

221/162

17700

67300

17400

82400

40300

1160

252/185

16700

64100

16700

79200

38300

1460

301/221

15800

60500

15600

74300

36500

1760

350/257

15130

57850

15100

71200

34700

H425

720

213/156.5

20700

83200

21100

111200

49840

860

246/181

19800

79650

20200

106800

47610

960

268/197

19100

77230

19700

103700

46510

1160

306/225

18500

73870

18700

97900

44500

1460

366/269

17350

69860

17800

93400

41830

1760

425/312

16900

66750

16900

89000

40050

H500

720

250/184

23360

83200

23360

111200

49840

860

290/213

22250

79650

22470

106800

47610

960

315/232

21870

77160

21670

103700

46510

1160

360/265

20700

73870

20470

97900

44500

1460

430/316

19580

69860

19580

93400

41830

1760

500/367.5

18690

66750

18690

89000

40050

H600

720

300/220

24500

89000

24250

115700

53400

860

348/256

23140

84500

23360

111200

50730

960

378/278

22670

82400

22770

107100

49720

1160

432/317

21800

79200

21580

102300

47610

1460

516/379

20500

74300

20470

97900

44500

1760

600/441

19580

71200

19580

93400

42720

H750

720

375/276

27600

89000

27800

115700

53400

860

435/320

26250

84500

26700

111200

50730

960

473/347

25300

82800

26000

107100

49720

1160

540/397

24500

79200

24500

102300

47610

1460

645/474

23140

74300

23580

97900

44500

1760

750/551

22250

71200

22250

93400

42720

H1000

490

279/205

34500

108000

37500

125000

60000

580

329/242

32000

102000

34200

120000

57800

720

408/300

30700

97000

30900

115700

53400

860

488/359

29340

93400

29700

111200

50730

960

544/400

28500

91700

29200

107100

49720

1160

660/485

27600

87300

28500

102300

47610

1460

830/610

26250

84500

27200

97900

44500

1760

1000/735

24000

79100

25000

93400

42720

H1360

490

680/500

35000

108000

38600

125000

60000

580

821/604

32600

102000

35400

120000

57800

720

1020/750

31200

97000

31800

115700

53400

860

1217/895

29800

93400

30600

111200

50730

960

1360/1000

29700

91700

30200

107100

49720

1160

1643/1208

28200

87300

29500

102300

47610

1460

2067/1520

26900

84500

28300

97900

44500



Table 2A Power and Bearing Thrust Values at Different Speeds

Vertical axis speed (r/min)

490

580

690

720

860

960

1160

1460

1760

2000

2200

2400*

2800*

3000*

% of power at 1760r/min

30

43

48

50

58

63

72

86

100

105

111

116

128

133

% of thrust at 1760r/min

150

144

136

134

126

122

115

106

100

96

92

90

85

83

Note: 1. Parameters in Table 2 are only for FIG. 1 indicates the direction of rotation, please consult our company for other directions of rotation;

2. If the vertical axis speed exceeds 2200r/min, please contact our company.

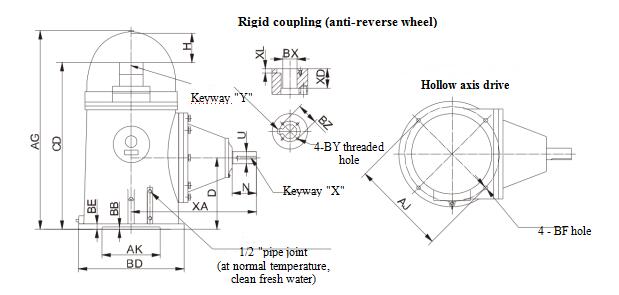

Dimensions (According to NEMA Standards)


Table 3 Dimensions (mm)

Model

CD

D

U

XA

N

AG

H

BE

BD

AJ

AK

BB

BF

Keyway "X"

Max.BX

XD

FIG.1,4

FIG.2,3

H80

514

228.5

48

419

90

629

102

19

419

375

343

5

18

14X4.5X70

40

None

45

H110

635

289

50

445

90

749

102

25

419

375

343

5

18

14X4.5X70

50

50

54

H125

635

289

50

445

90

749

102

25

419

375

343

5

18

14X4.5X70

50

50

54

H150

762

336.5

60

521

120

876

102

25

508

375

343

5

18

18X5.5X95

55

55

60

H200

762

336.5

60

521

120

876

102

25

508

375

343

5

18

18X5.5X95

55

55

60

H300

870

381

70

610

140

1016

133

29

508

375

343

5

18

20X6X121

60

60

66

H350

978

419

70

737

140

1168

178

32

622

559*

343

10

24

20X6X121

60

60

76

H425

1003

419

75

762

145

1168

159

32

622

559*

343

10

24

20X6X121

60

60

85

H500

1003

419

90

787

170

1168

159

32

622

559*

343

10

24

25X7X140

75

75

85

H600

1080

419

95

838

190

1295

203

32

622

559*

343

10

24

25X7X140

75

80

100

H750

1162

482.5

100

914

190

1372

197

38

775

660

559

10

24

28X8X152

90

90

100

H1000

1405

545

110

1043

210

1610

153

35

920

860

600

7

8-28

28X8X170

100



H1360

1507

550

130

1290

250

1725

153

35

1250

1180

1120

-5

8-28

32X9X220

110



Note:  ① Dimensions of CD and H may change when the heavy type thrust drive is used; Dimensions of XA, U, N and X may change when the speed decrease ratio is 7:4-4:1, please contact our company.

②Dimensions of D, CD, AG, XA, U, N and X may change when the speed increase ratio is 3:4-1:2, please contact our company.

③4 cases, namely the direction of rotation shown in FIG.2-FIG.4, heavy type thrust, speed decrease ratio of 7:4~3:1, and the speed increase ratio of 3:4-1:2, it is produced according to the special order.

④Tolerance: Axis diameter U, base groove AK, coupling hole BX

⑤* 4 pieces of M16 screw holes (depth: 25) can also be arranged on the circumference of a circle with the diameter of Φ375.


Transportation Weight and Size


Model

Net weight kg

Gross weight --Kg

Packing container dimension -- (mm)

Volume m3



Domestic

Container

Plywood box

Length

Width

Height


H80

130

140

145

155

635

485

940

0.29

H110

175

186

195

200

635

485

940

0.29

H125

180

190

198

205

635

485

940

0.29

H150

290

310

320

330

840

585

1120

0.55

H200

290

310

320

330

840

585

1120

0.55

H300

410

455

455

480

1020

765

1295

1.1

H350

630

680

680

705

1170

765

1320

1.2

H425

720

770

770

795

1170

765

1320

1.2

H500

730

780

780

805

1170

765

1320

1.2

H600

930

1010

——

1050

1270

790

1500

1.5

H750

1370

1480

——

1540

1450

965

1550

2.2

H1000

2200

2480

——

1560

2050

1100

1800

4.1

H1360

2800

3000

——

3080

2200

1450

1950

6.2

Note: Actual weight and size may vary slightly

Table 3A: Standard drive part connection dimension

Hole BX

Bolt circumference BZ

Thread BY

Depth XL

Keyway Y (width x depth)

φ25

φ46

4-M6

9

8x3.3

φ30

φ60

4-M8

9

8x3.3

φ35

φ60

4-M8

11

10 x 3.3

φ40

φ70

4-M8

13

12x 3.3

φ45

φ70

4-M8

15

14x3.8

φ50

φ80 (H125)

4-M10

15

14x3.8

φ50

φ90

4-M10

15

14x3.8

φ55

φ90

4-M10

17

16x4.3

φ60

φ100

4-M10

19

18x4.4

(φ65)

(φ100 )

4-M10

19

18x4.4

φ70

φ140

4-M10

21

20 x 4.9

(φ75)

140 )

4-M10

21

20 x 4.9

φ80

φ140

4-M10

23

22 x 5.4

φ90

φ150

4-M10

26

25 x 5.4

φ100

φ160

4-M10

29

28 x 6.4

φ110

φ160

4-M12

29

28 x 6.4







Previous:
Next:

Related Products

ABOUT

LINKS

PRODUCTS

CONTACT

Tel: +86-25-57116860
Phone: +86-13912908767
Email: info@wypumps.com
Add: No.3 Xiaoqi Road, Xiongzhou Industrial Park, Luhe Distrcit, Nanjing, Jiangsu, China
Copyright © 2018.Nanjing Wangyang Pumps Co., Ltd. All rights reserved.  Sitemap
