Introduction

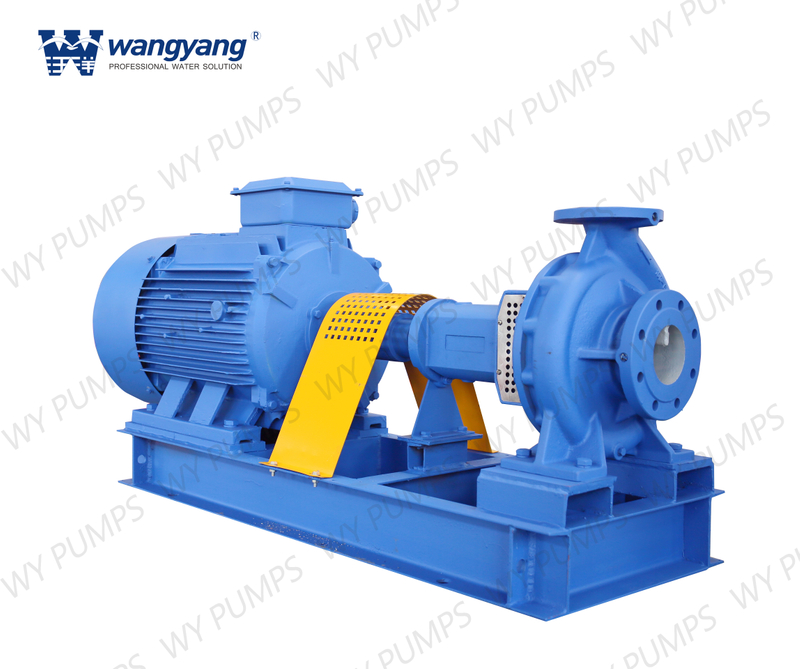

A-C Series 2000 Models 100 and 150 frame-mounted end suction pumps are designed with top center line discharge that helps simplify piping layouts, reduces piping strain and is self-venting. Added to the design is the rear pull-out feature making servicing simpler and faster on this pump. Additionally, the mounting feet are cast integrally with the casing for a robust installation. To top off these offerings, the models feature a hydraulically-balanced impeller extends bearing life and ensures a smooth, quiet operation. With all of these options, this pump continues to be an industry favorite.
Materials of Construction
Part | Bronze Fitted |
Casing | Cast Iron |
Wearing Rings (optional) | Bronze Alloy |
Stuffing Box | Cast Iron |
Impeller | Bronze Alloy |
Shaft Sleeve | Bronze Alloy |
Impeller Nut and Washer | Plated Steel |
Gland | Zinc Alloy |
Mechanical Seal (when furnished) | Ni-resist, Carbon, SS |
Packing (when furnished) | Graphited Acrylic Yarn |
Seal Cage (when furnished) | Teflon |
Shaft | Steel |
Adaptor (close-coupled) | Cast Iron |
FEATURES
Model 100/150 (Frame Mounted): Flow to 3100 GPM; Heads to 360 ft TDH; Temperature to 250°F; Available in 30 sizes; Working pressure: varies by size 175-215 psi with 125 psi ANSI flanges; ANSI / OSHA-compliant cou- pling guard (standard on all model 150 pumps).
BENEFITS
Regreasable Bearing Frame Minimized maintenance costs
Time saving serviceability
True separation from motor to valute Reduction of vibration due to the base.
APPLICATIONS
General industry
Water supply condenser
Water transfer chilled and hot water circulation
