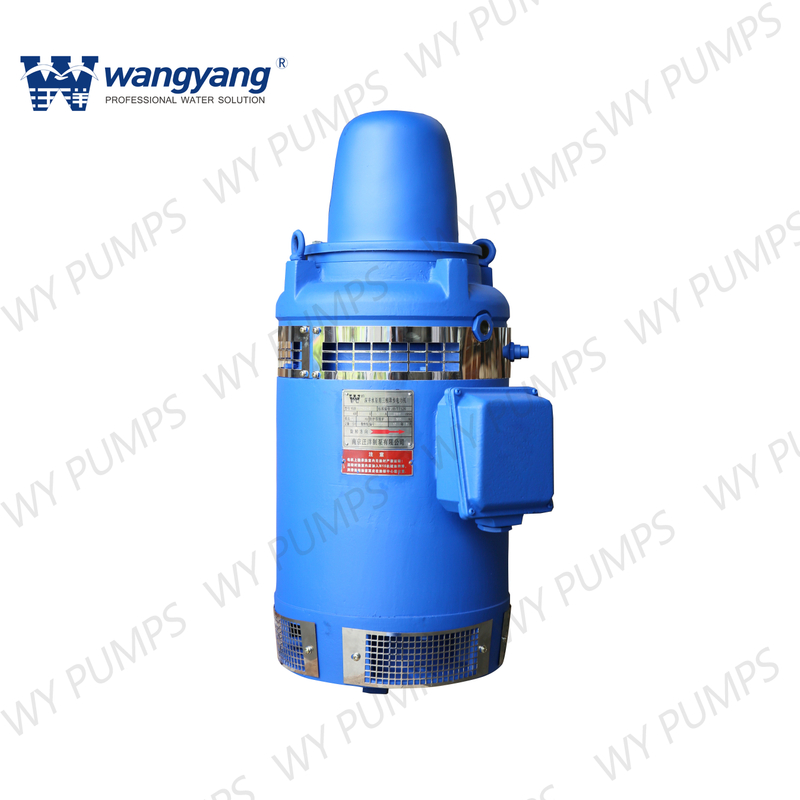

VHS Series Vertical Hollow-Shaft Motor

Quantity:

Features and Applications:

Series VHS vertical hollow-shaft motors,the latest products of our factory, are three phase squirrel cage induction motors specially for driving vertical deep-well turbine pumps.

The motors are of high efficiency, high starting torque, quiet-running, low vibration, low temperature rise, can sustain heavy axial thrust load, have compact and reliable structure with easy maintenance etc. The rated output grades conform to the IEC standard.

After being fitted with vertical pumps, the motors are widely used in pumping underground water in mines, city, farm and factories etc. The degree of protection is weather-protected type1(drip-proof)


Ordering:

When making an enquiry or ordering a motor, please give the following information:

●Horsepower or kW output

●Speed

●Voltage

●Frequency

●Insulation class

●Ambient temperature

●Non-reverse backstop, if required

●Method of starting

●Unless specified otherwise at the time of ordering, the downthrust of the motor would be of standard.


Motors of Special Purpose:

We also provide VHS motors of different applications, namely with rated voltage below 500v, frequency of 60Hz, class of insulation either B or F etc.                                          .

We can also supply other special purpose motors, if required please contact us directly.                                   .

We are willing to serve you with pleasure.


Ratings and Performance:

Model

Rated
Output
(hp/kW)

Rated
Current
(A)

Rated
Voltage
(V)

Rated
Frequency
(Hz)

Synchronous
Speed
(r/min)

Down Thrust
(Standard)

Insulation
Class

Degree of
Protection

(N)

(Ib)

VHS160-1-2

15/11

22.5/22

380

50

3000

9800

2200

B、F

IP23

VHS160-2-2

20/15

30

VHS160-1-4

15/11

23/22.5

1500

12740

2860

VHS160-2-4

20/15

30

VHS180-1-2

25/18.5

36

380

50

3000

12740

2860

B、F

IP23

VHS180-2-2

30/22

43/42.5

VHS180-1-4

25/18.5

37

1500

15680

3520

VHS180-2-4

30/22

43.5/43

VHS200-1-2

40/30

58

380

50

3000

16660

3740

B、F

IP23

VHS200-2-2

50/37

70.5/70

VHS200-1-4

40/30

58.5

1500

21560

4850

VHS200-2-4

50/37

72/71

VHS200-3-4

60/45

85/85.5

VHS250-1-4

75/55

105.5/103.5

380

50

1500

28420

6390

B、F

IP23

VHS250-2-4

100/75

139.5/140

VHS250-3-4

125/90

173/167.5

VHS280-1-4

150/110

205.5/202

380

50

1500

39200

8810

B、F

IP23

VHS280-2-4

175/132

238/241

VHS280-3-4

200/150

275/276

VHS280-4-4

250/185

348/345

VHS280-5-4

270/200

374/371

VHS280-6-4

300/220

415/408

VHS355-1-4

380/280

500

380

50

1500

63560

14000

F

IP23

VHS355-2-4

400/300

526/536

VHS355-3-4

430/315

565/563

108960

24000

VHS355-4-4

450/335

591/598

VHS355-5-4

480/355

630/634

VHS355-6-4

500/370

657/661

VHS132-1-2

7.5/5.5

11/0.8

380

50

3000

7840

1760

F

IP54

VHS132-2-2

10/7.5

14.4/14.5

VHS180-1-2

15/11

22.5./22

380

50

3000

9800

2200

F

IP54

VHS180-2-2

20/15

30

VHS180-1-4

15/11

23/22.5

1500

12740

2860

VHS180-2-4

20/15

30

VHS200-1-2

25/18.5

36

380

50

3000

12740

2860

F

IP54

VHS200-2-2

30/22

43/42.5

VHS200-1-4

25/18.5

37

1500

15680

3520

VHS200-2-4

30/22

43.5/43

VHS225-1-2

40/30

56.8/58

380

50

3000

16660

3740

F

IP54

VHS225-2-2

50/37

70.5/70

VHS225-3-2

60/45

83/85

VHS225-1-4

40/30

58/58.5

1500

21560

4850

VHS225-2-4

50/37

72/71

VHS225-3-4

60/45

85/85.5

VHS280-1-4

75/55

105.5/103.5

380

50

1500

28420

6390

F

IP54

VHS280-2-4

100/75

139.5/140

VHS280-3-4

125/90

173/167.5

VHS315-1-4

150/110

205.5/202

380

50

1500

39200

8810

F

IP54

VHS315-2-4

175/132

238/241

VHS315-3-4

200/150

275/276

VHS315-4-4

250/185

348/345

62720

14094

VHS315-5-4

270/200

374/371

VHS355-1-4

300/220

405.9/405

380

50

1500

74620

16770

F

IP54

VHS355-2-4

350/260

480/475

VHS355-3-4

380/280

513.6/515

VHS355-4-4

400/300

539.2/550

VHS355-5-4

430/315

576.9/575

VHS355-6-4

450/335

614/615

VHS355-7-4

480/355

645.9/650

VHS355-8-4

500/375

671.3/685

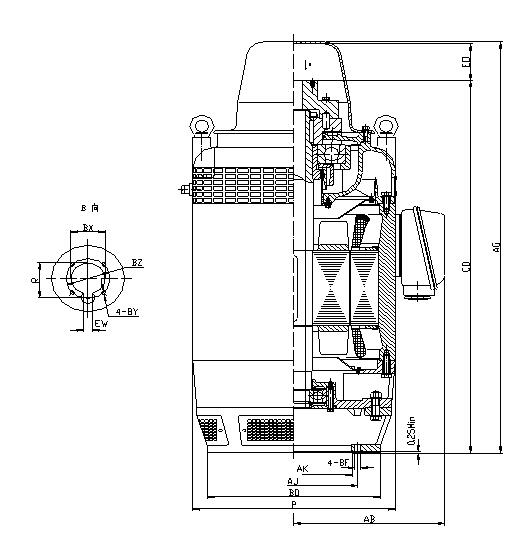

Mounting and Overall Dimensions:

VHS(IP23) SERIES VERTICAL HOLLOW-SHAFT MOTORS

VHS(IP54) SERIES VERTICAL

HOLLOW-SHAFT MOTORS TEFC
