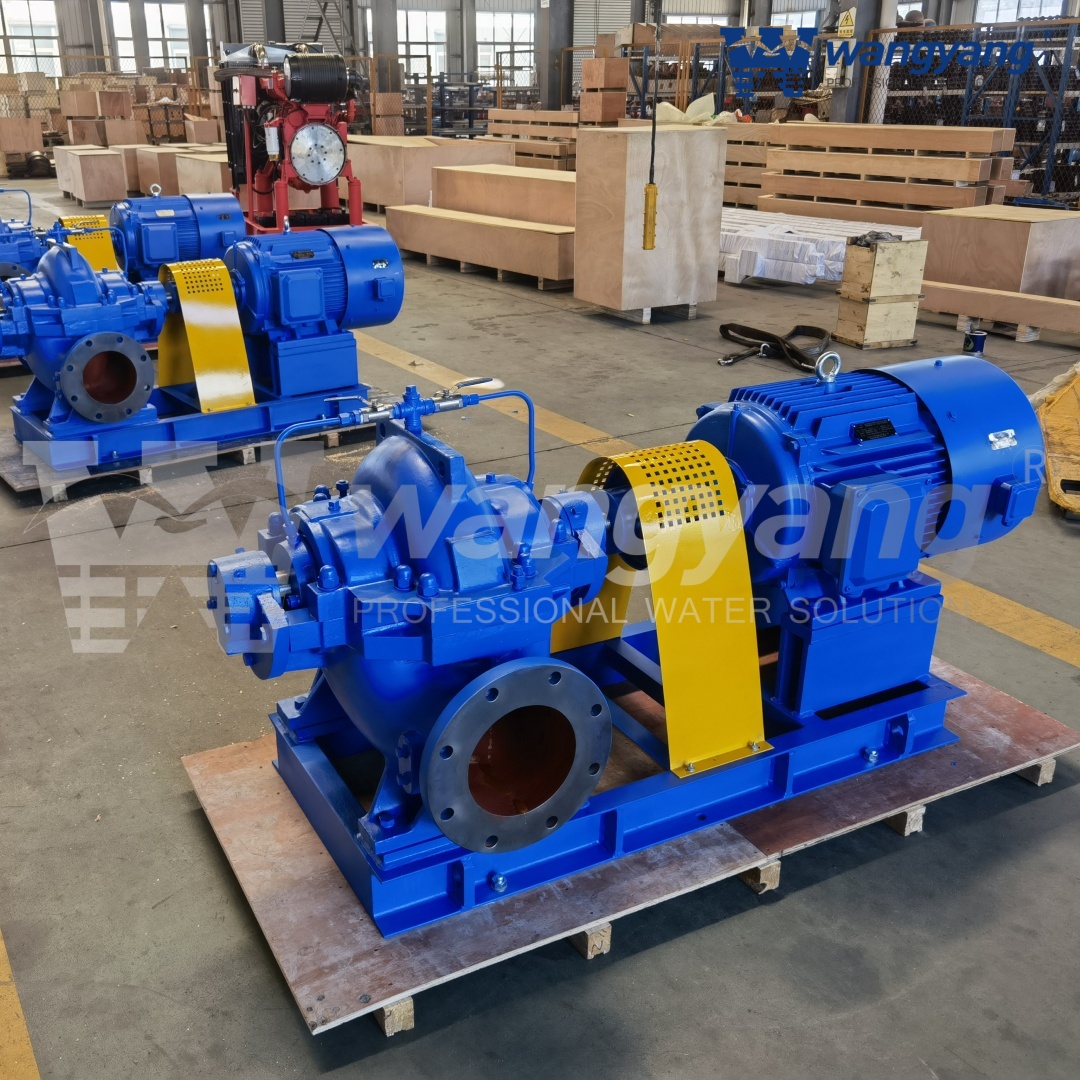

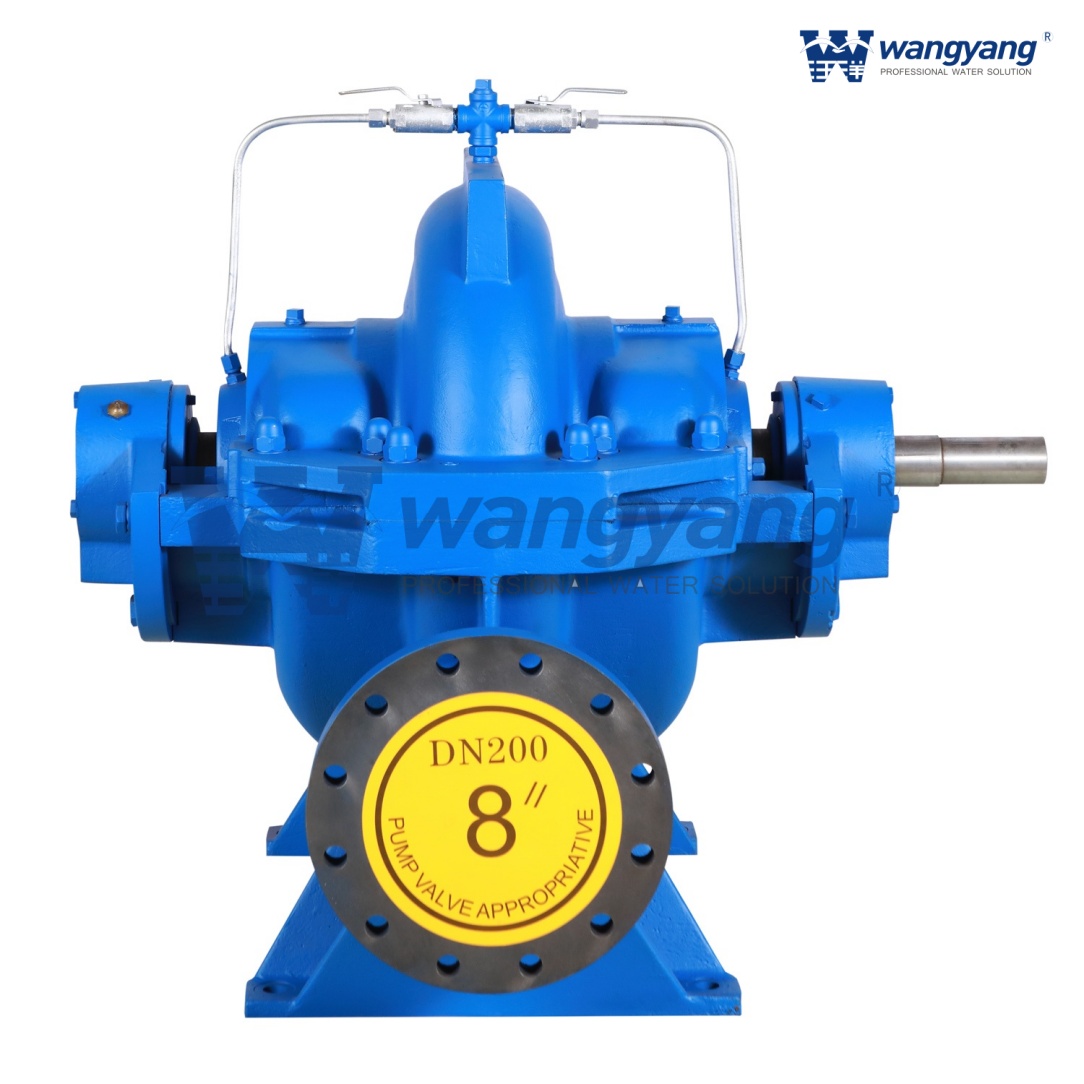

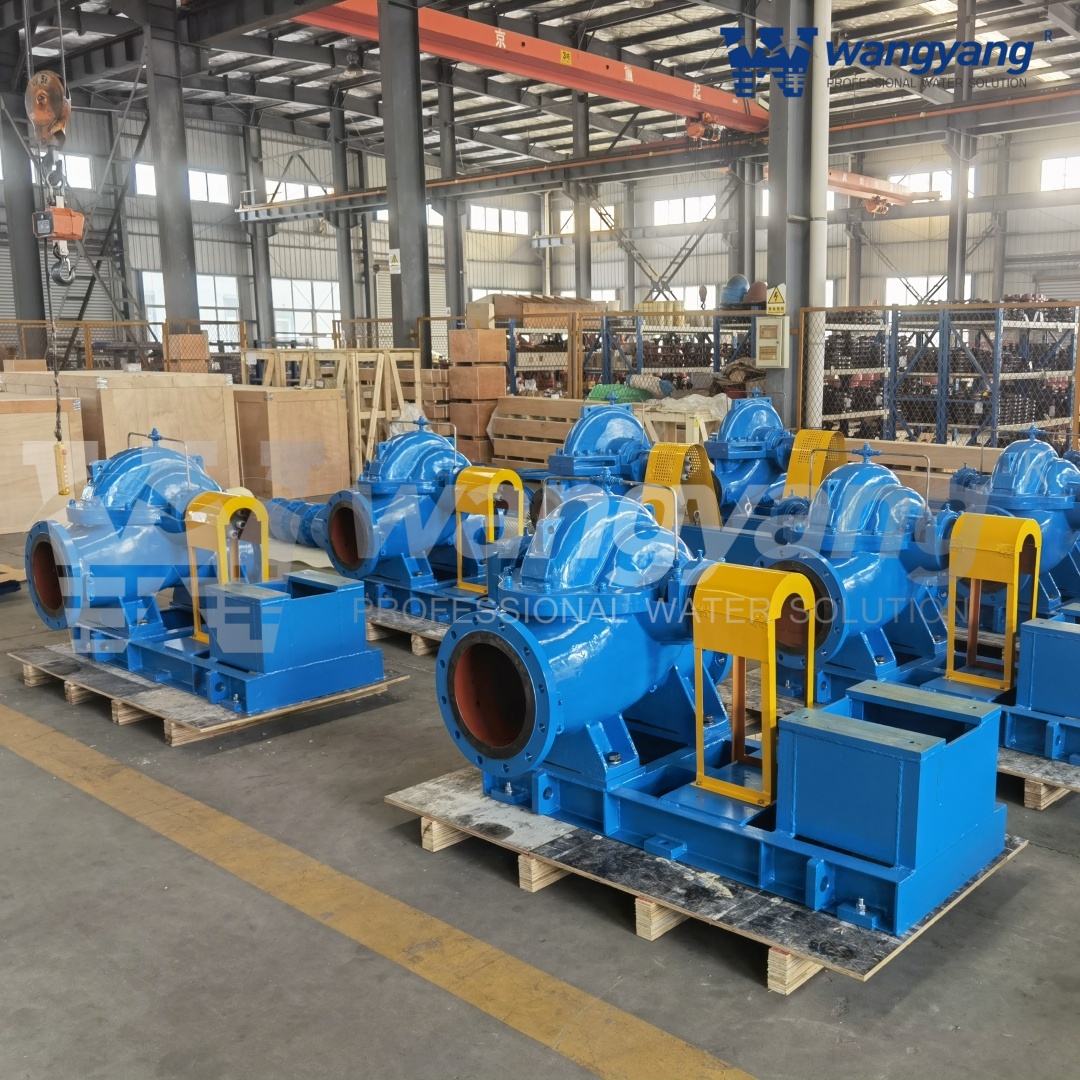

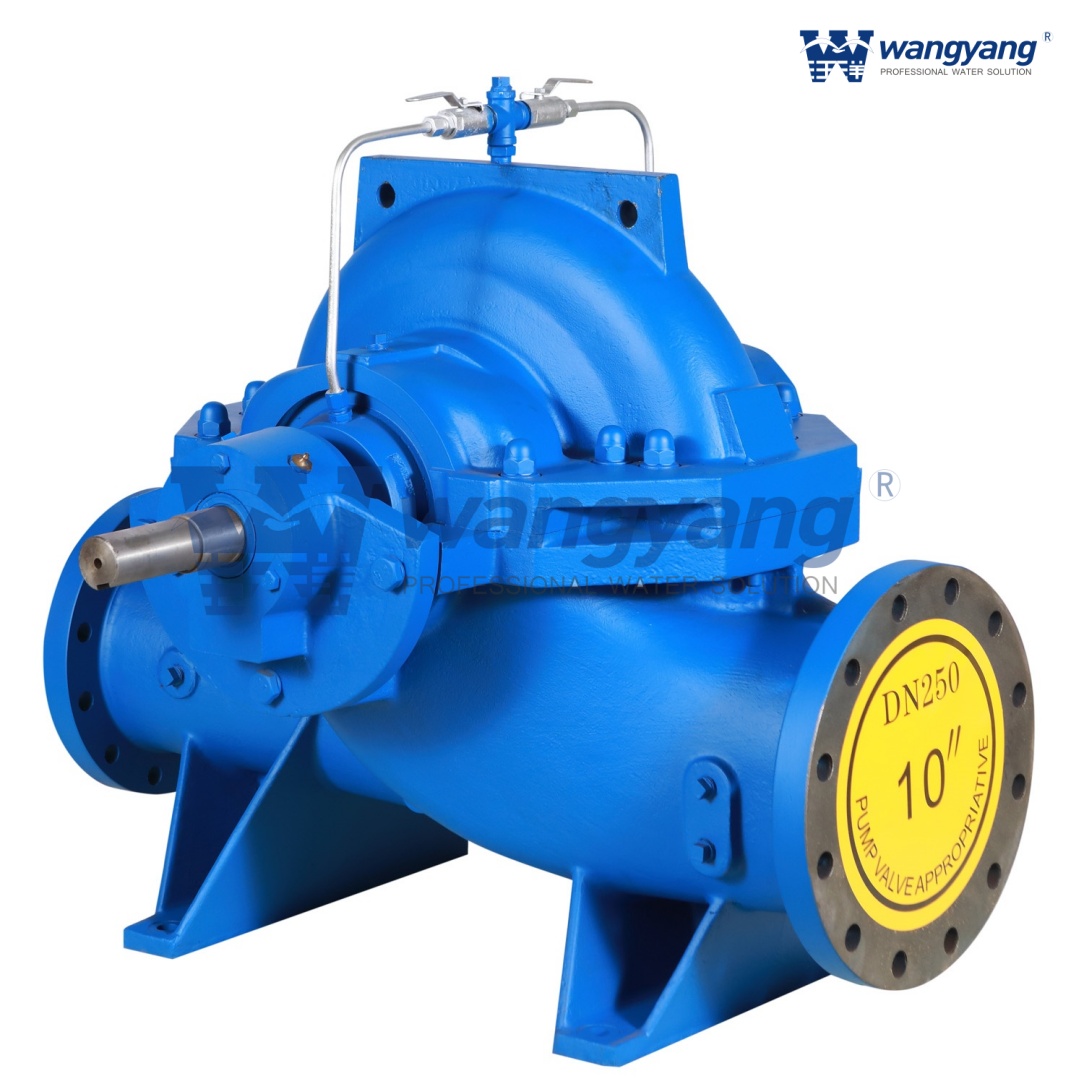

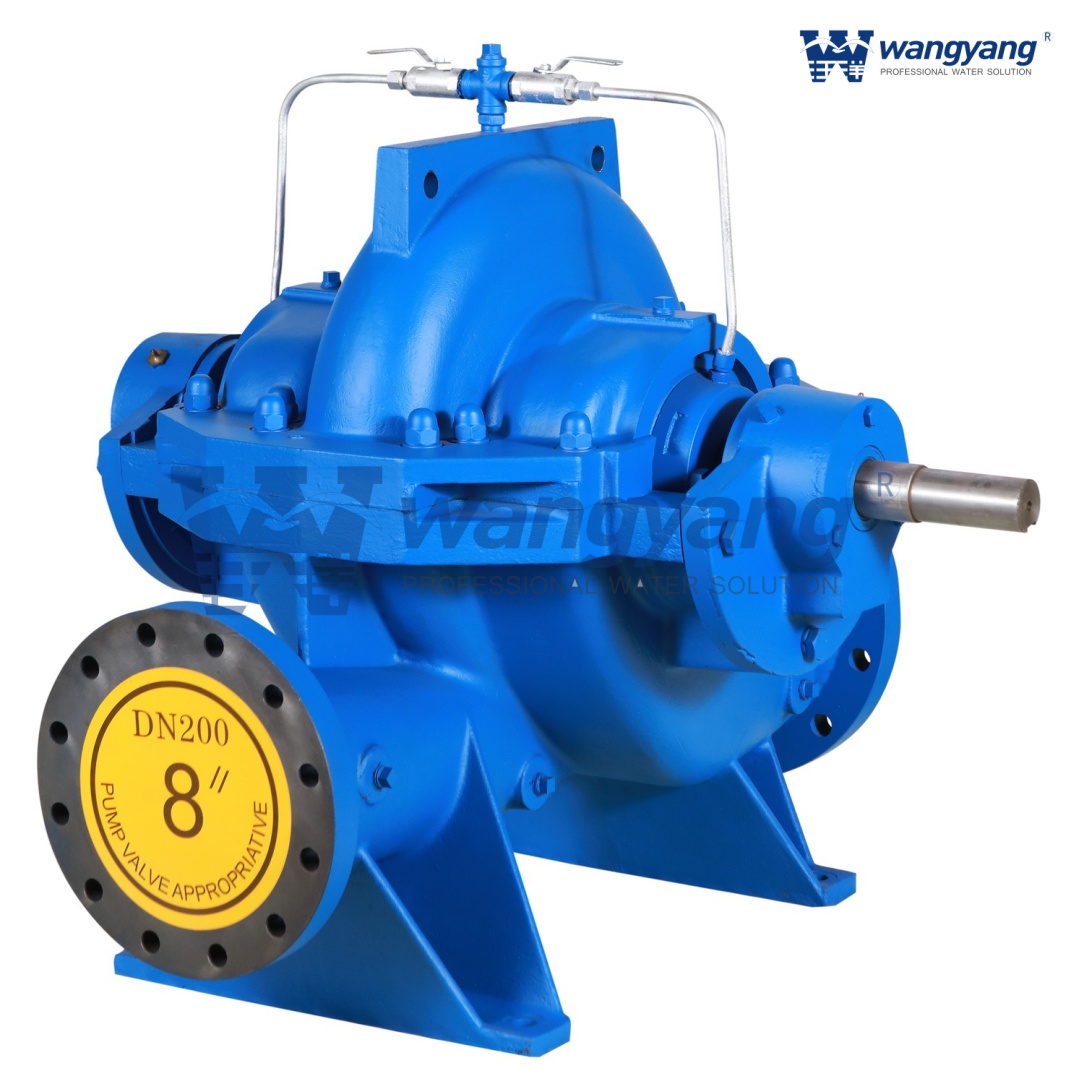

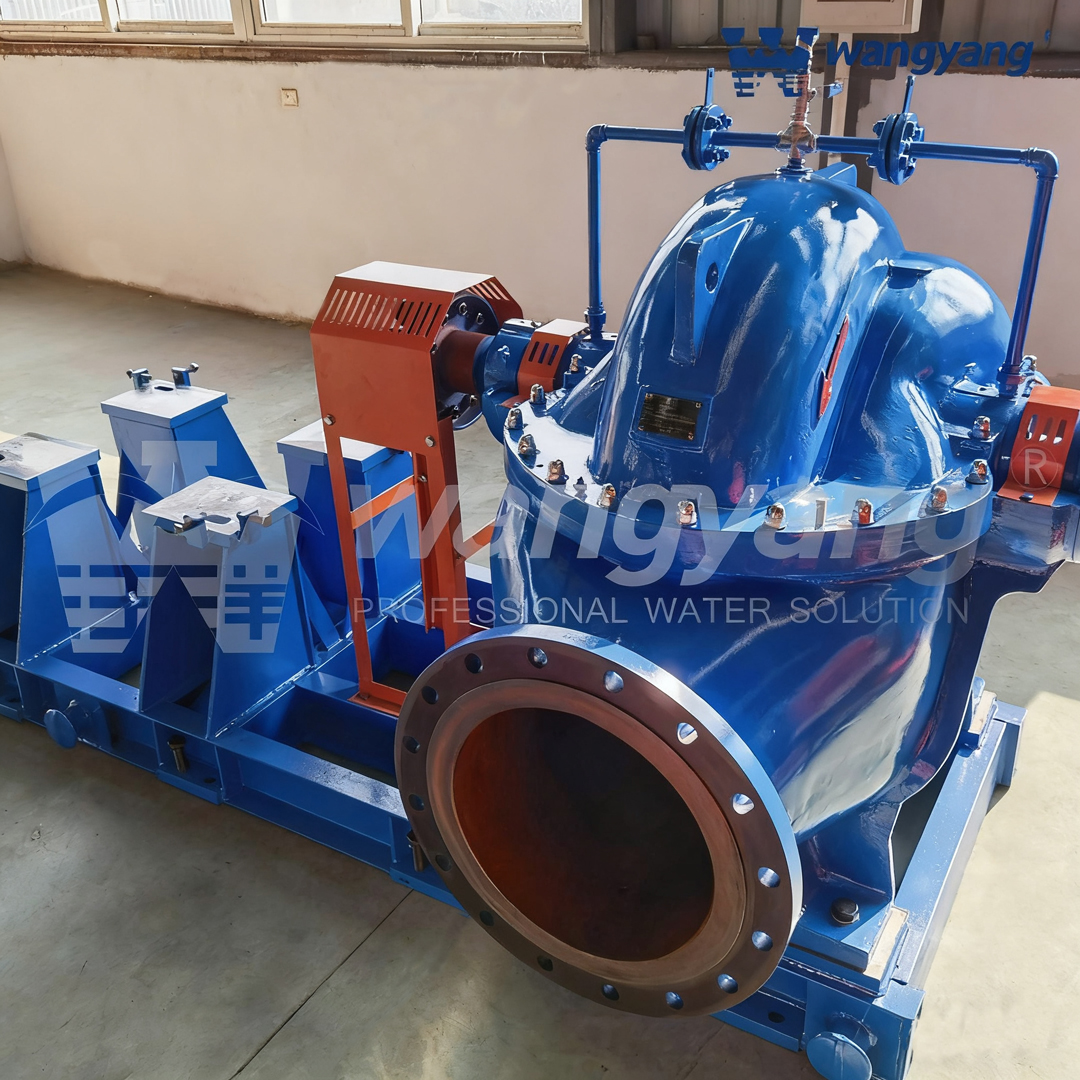

XS type split case pump is a high-efficiency single-stage double-suction centrifugal pump designed for stable large-flow water delivery It is widely used in water supply HVAC circulation irrigation drainage power plants fire protection and industrial systems offering reliable performance energy-saving operation and long service life across multiple applications worldwide industries
The XS type split case pump is a new generation high-performance single-stage double-suction centrifugal pump. It is designed for efficient and reliable delivery of liquids across various applications, including water plants, HVAC circulation, heating pipe networks, building water supply, irrigation, drainage, power plants, industrial water systems, fire protection, shipbuilding, and mining.
Model Explanation
Example: XS 250-450A-L(R)-J
Code
Meaning
XS
Advanced type split case pump
250
Pump outlet diameter (mm)
450
Standard impeller diameter (mm)
A
Modified impeller outer diameter (max diameter if no mark)
L
Vertical mounting
R
Heating water
J
Modified pump speed (default speed if no mark)
Applications
Water treatment plants and municipal water supply
Air-conditioning and heating circulation systems
Irrigation and drainage pump stations
Power plants and industrial water supply systems
Fire-fighting systems
Shipbuilding and mining industries
Pump Supporting Program & Services
Wangyang Pumps emphasizes energy-saving and environmental protection. By analyzing media characteristics and operating conditions, we select optimal materials for all wetted components to ensure:
Safety and reliability
Economical and efficient operation
Long-term durability
Our support program includes technical consultation, installation guidance, and maintenance services to ensure the pump performs optimally in all applications.
Technical Specifications
Pump Outlet Diameter: DN 80–900 mm
Supports a wide range of outlet sizes from medium to ultra-large flow systems.
This flexibility allows the pump to be used in both municipal infrastructure and large-scale industrial water transfer projects, ensuring strong adaptability across different engineering requirements.
Capacity:: 22–16236 m³/h
Handles extremely wide flow capacity ranges, from small operational systems to high-volume water transportation.
This ensures stable performance under varying load conditions and makes the pump suitable for complex and large-scale water supply or drainage applications.
Head: H = 7–300 m
Provides a broad head range suitable for low-lift to high-pressure pumping conditions.
This allows the pump to maintain efficient operation in different hydraulic environments, including long-distance water delivery and high-elevation systems.
Temperature: T = -20°C to 200°C
Designed to operate reliably under both low-temperature and high-temperature fluid conditions.
This makes it suitable for diverse industrial environments such as heating systems, cooling circulation, and process water transport.
Solid Parameter: < 80 mg/L
Capable of handling fluids with low solid content without affecting performance stability.
This ensures smooth operation, reduces wear on internal components, and extends the overall service life of the pump.
Permissible Pressure: < 5MPa
Built to withstand high-pressure working conditions safely within industrial standards.
This enhances operational safety and reliability, making it suitable for demanding applications such as power plants and large municipal systems.
Model Features
1.Type XS split case pumps work stably with less noise and vibration, may be properly work at raising speed due to short spacing between both side supports, thus they can be widely used.
2.The pipelines arrangement of type XS split case pump looks simple and beautiful due to inlet and outlet at the same line.
3.The same rotor of type XS split case pumps can be operated in reverse direction to avoid damage to the pumps by water hammer.
4.Unique design of high temperature form: using middle support, thickening the pump casing, using cooling seals and oil lubrication bearing, make XS split case pump suitable for working at 200℃, especially for supplying heating net system.
5.Type XS split case pump can be vertically or horizontally mounted according to different working condition, with mechanical seals or packing seals.
6.With industrial design, the outline of XS split case pump is clear and beautiful in line with modern aesthetics.
7.The efficiency of XS split case pumps are 2% - 3% higher than the same type pumps due to adopting advanced hydraulic model and thus reduce the operating costs significantly.
8.The NPSHr of type XS split case pumps are 1 - 3 meters lower than the same split type pumps which reduced the foundation costs and extend the using life.
9.Choosing import brand bearing, and other parts material chosen by customer, make the pump suitable for any operation condition and reduce the maintenance cost significantly.
10.It is not necessary to adjust mechanical seals, so it is very easy and simple to replace them.
11.It is rapid and simple to assemble and dismount the rotor parts due to using elastic prestress assembling.
12.It is unnecessary to make adjustment to any clearance when assembling.
