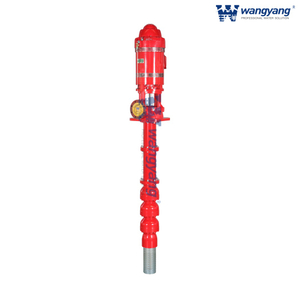

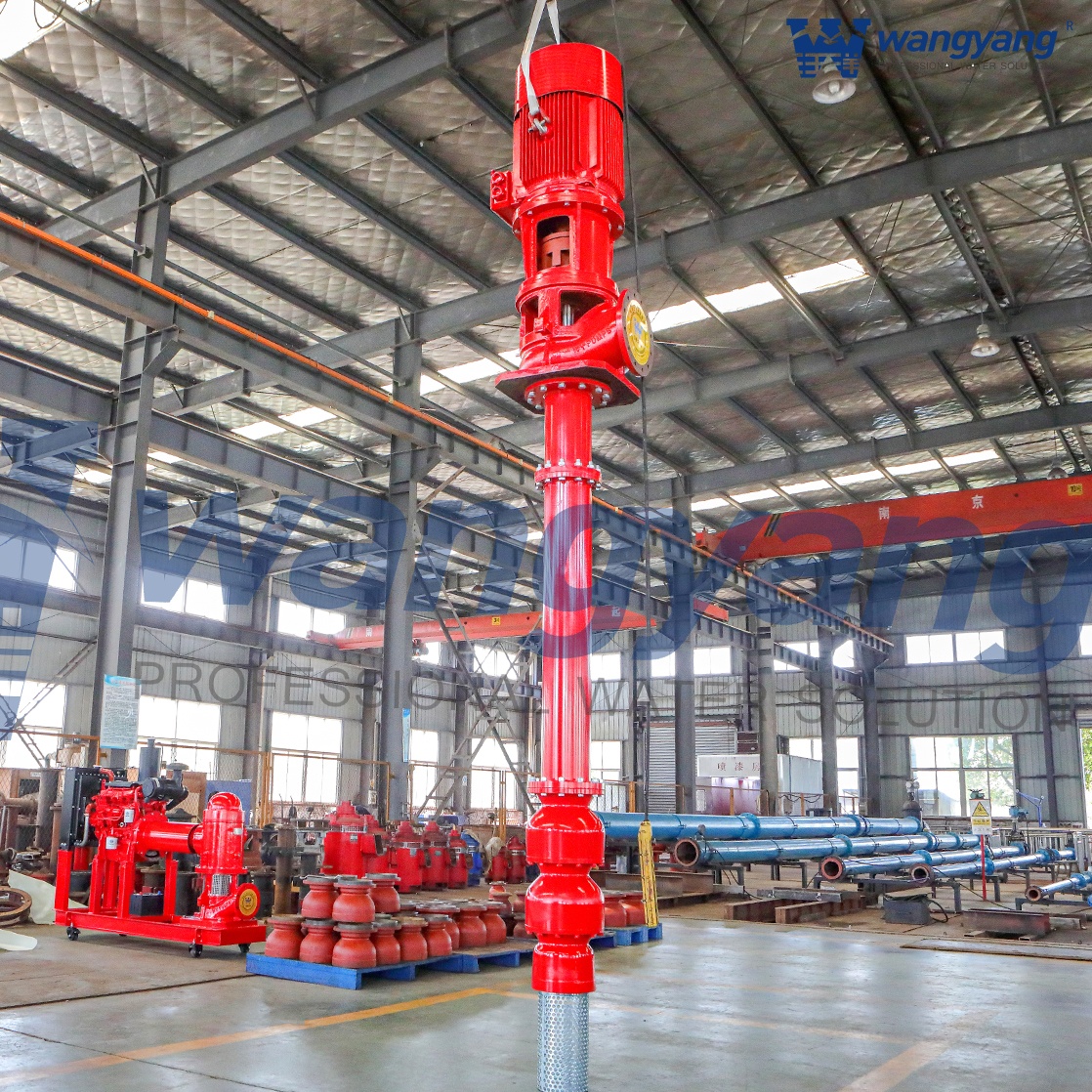

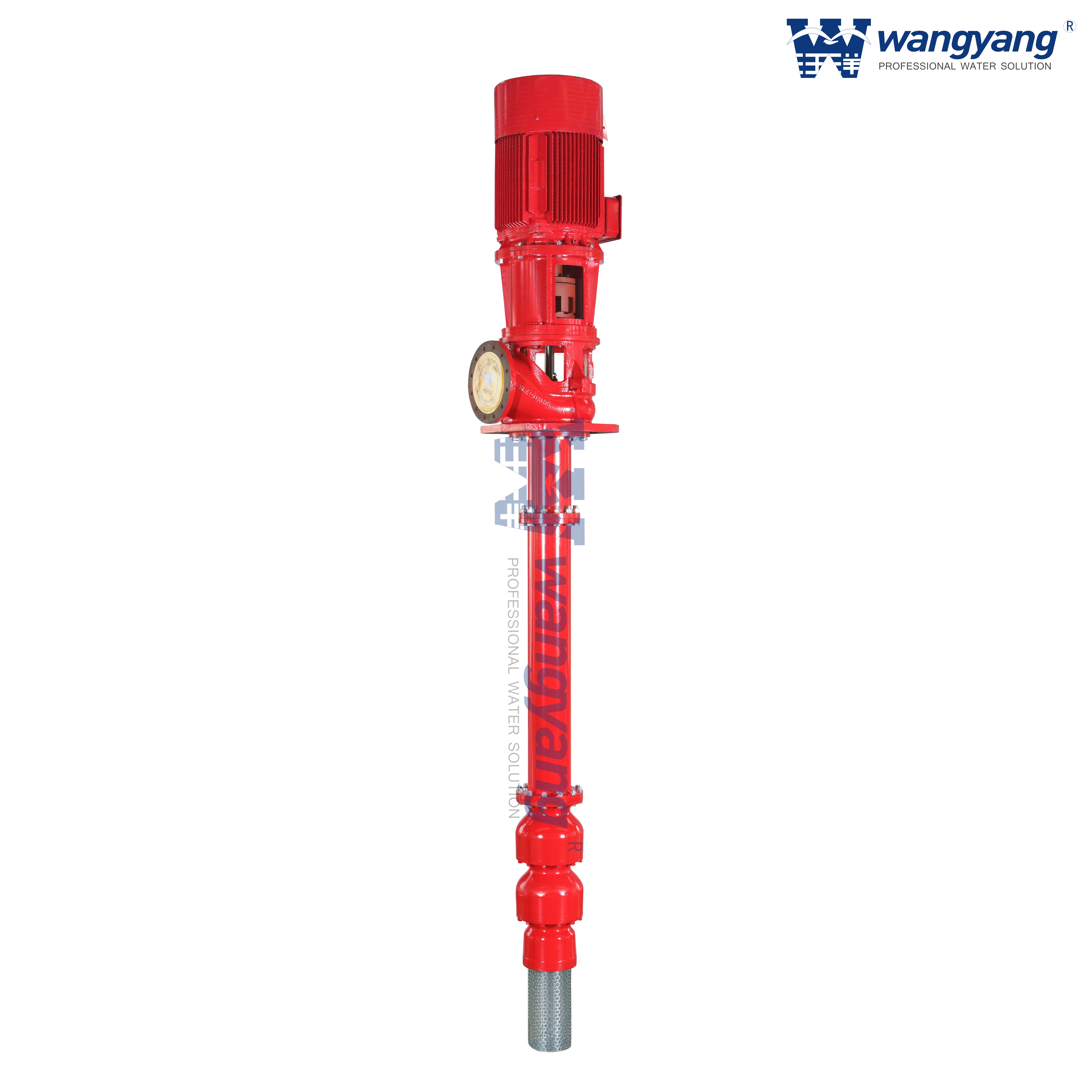

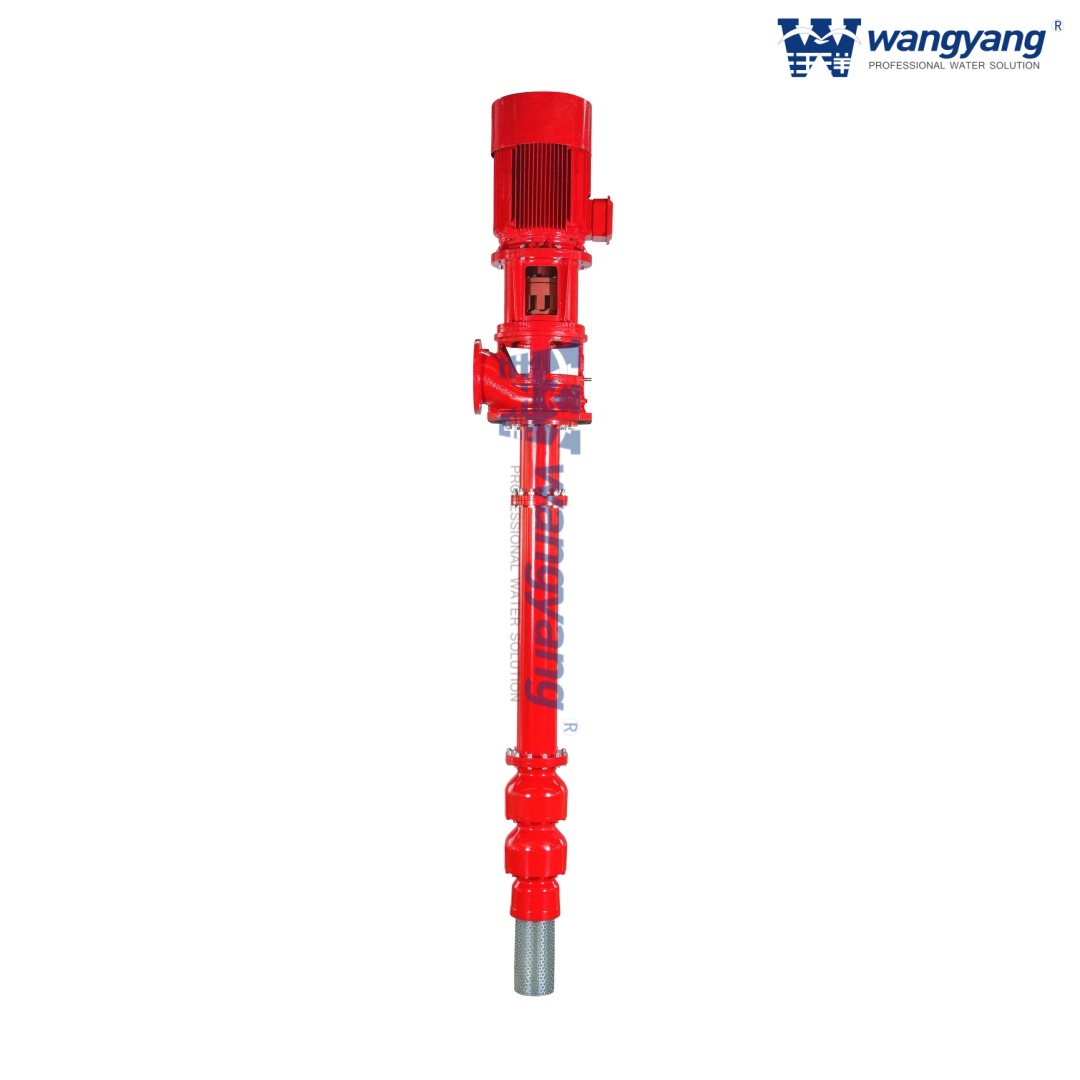

Using state-of-the-art techniques from USA in turbine pump design, Wangyang vertical turbine pump covers a wide range of hydraulic conditions to meet virtually every pumping service in the industry with optimum efficiency.
Advantage of Vertical Turbine Pump
• Advanced hydraulic model and structure design, Ashland process for core, Epoxy coated in blade passage of impeller, reasonable material selection, excellent product performance, long service life.
• High efficiency, higher 2~8%, than Local J、JD、JC Pump, with flat efficiency curve wide area for high efficiency add 10~20% separation range, significant energy saving effort
• The sand throwing apparatus, a labyrinth structure make the sand cannot enter the bearing
• Impeller and motor shaft is supported copper bearing, shaft runout control within American standard 0.13mm, smooth running, low noise.
• Pump discharge head has beautiful appearance, convenient repair window, is easy to replace packing
• Compared with the same domestic flow pump, the workingparts of small diameter about 1 inches, renovation can significantly save the user cost and suitable for pumping well
| Advanced Design | Ashland process, epoxy coating |
| High Efficiency | 2-8% higher, energy-saving |
| Sand Prevention | Labyrinth structure |
| Copper Bearings | Smooth, low-noise operation |
| Easy Maintenance | Convenient repair, easy packing |
| Cost-Effective | Smaller parts, lower costs |

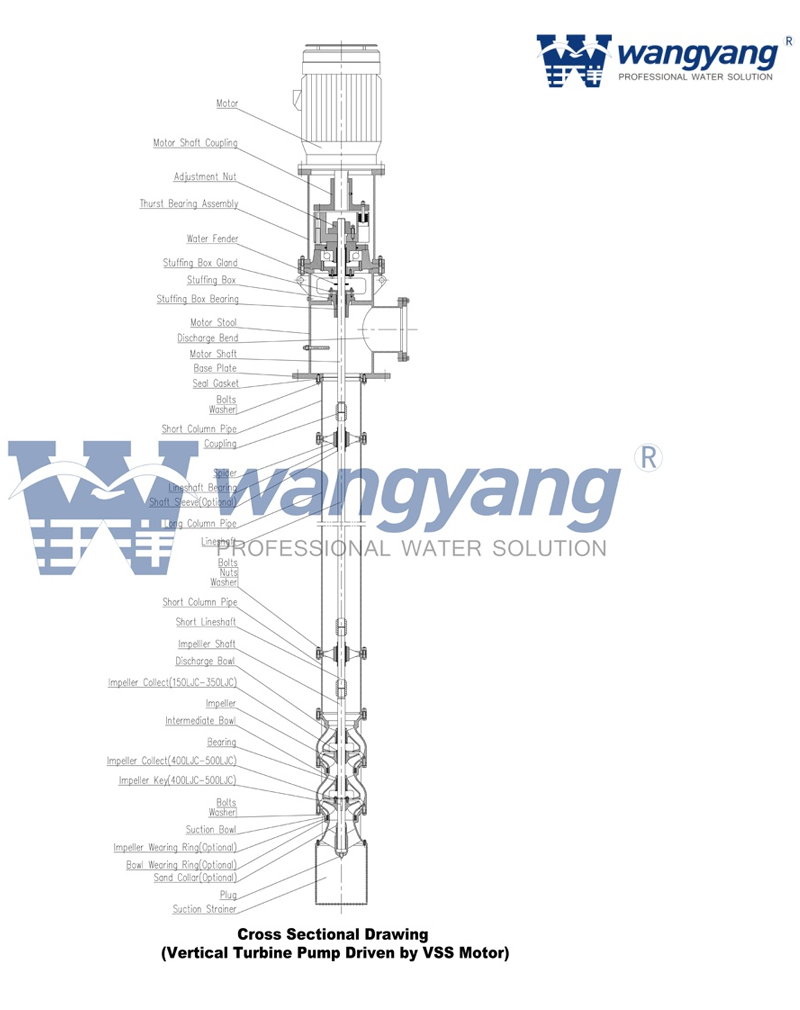

Cross Sectional Drawing

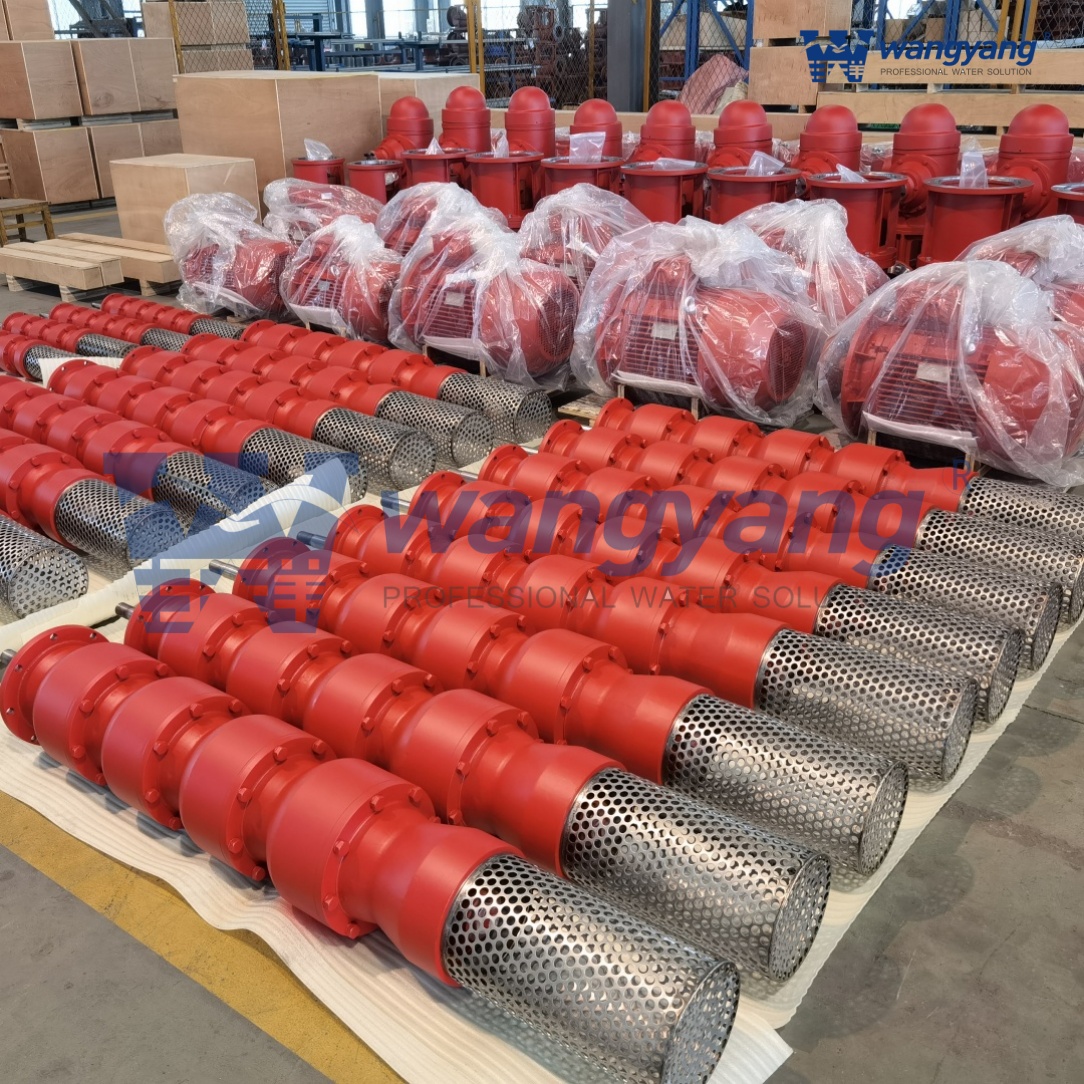

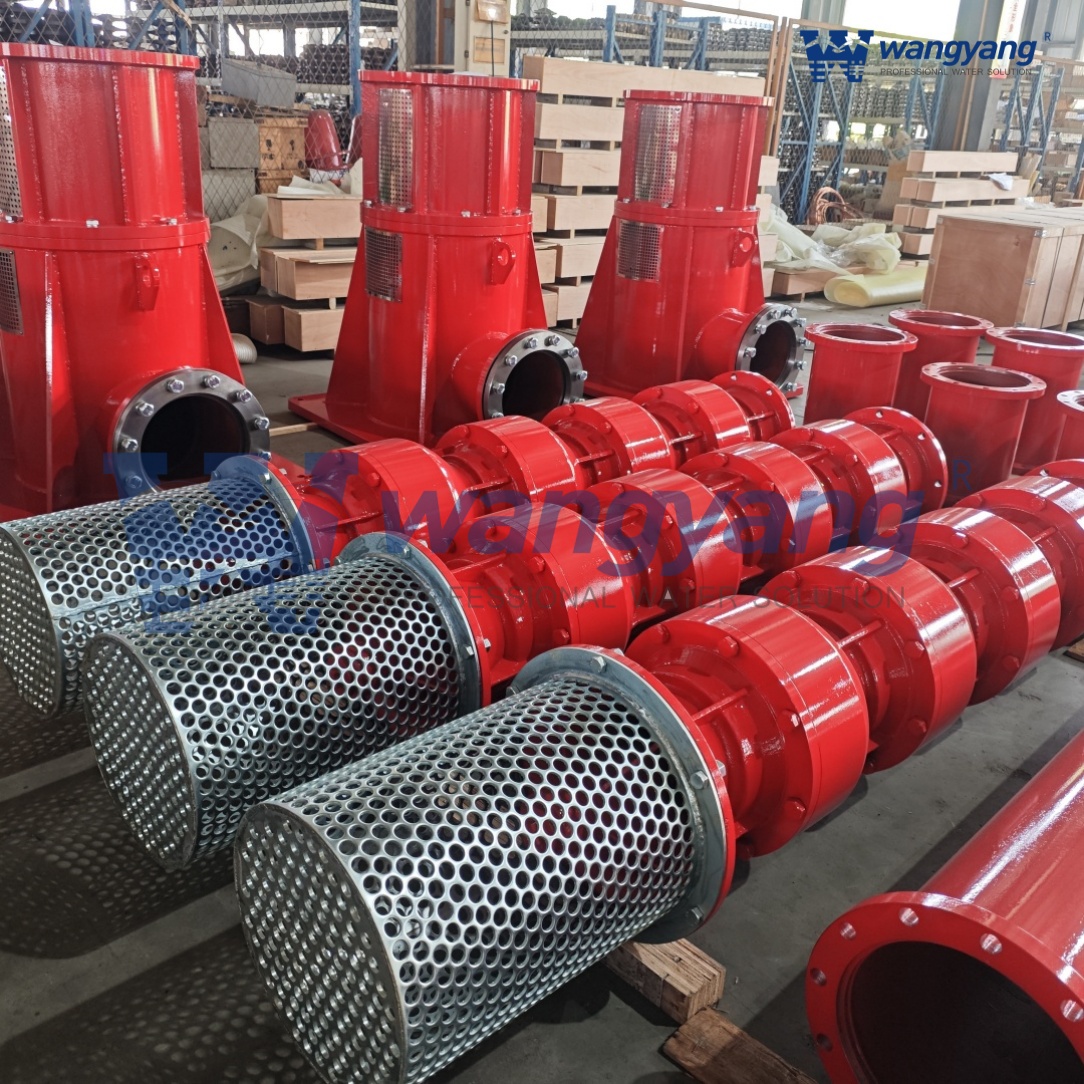

1. Pump Bowl Assembly
The bowl assembly is the heart of the vertical turbine pump. The impeller and diffuser type casing are designed to deliver the head and capacity that your system requires in the most efficient way possible. The fact that the vertical turbine pump can be multi-staged allows maximum flexibility both in the initial pump selection and in the event that future system modifications require a change in the pump rating.
A variety of material options allows the selection of a pump best suited for even the most severe services. The many bowl assembly options available ensure that the vertical turbine pump satisfies the users' needs for safe, efficient, reliable and maintenance-free operation.
2. Flanged Column
Column sections are provided with flanged ends incorporating registered fits for ease of alignment during assembly to ensure concentricity. Our standard bearing retainers are threaded into the column section. Product lubricated lineshaft is recommended for ease of maintenance. Renewable shaft sleeve or hard facing of shaft available for longer life. The enclosed lineshaft is protected by water flushing the enclosing tube bearing on corrosive / abrasive services. Oil lubricated lineshaft available on long settings.

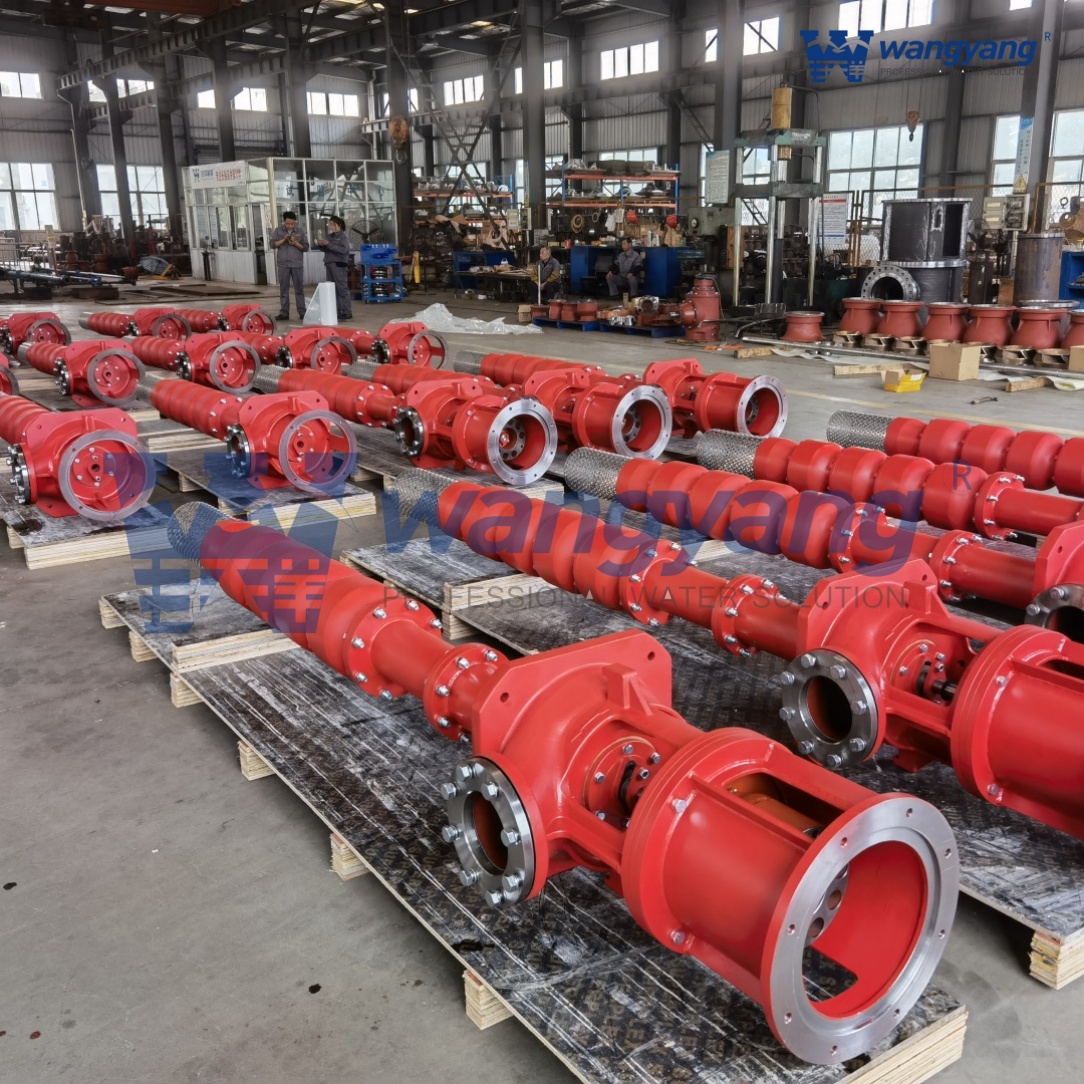

3. Discharge Head
The discharge head functions to change the direction of flow from vertical to horizontal and to couple the pump to the system piping in addition to supporting and aligning the driver. Discharge head accommodates all types of driver configurations. Optional sub-base can be supplied. Wangyang offers three basic types for maximum flexibility.
Hydraulic Coverage of Vertical Turbine Pump
 |  |
