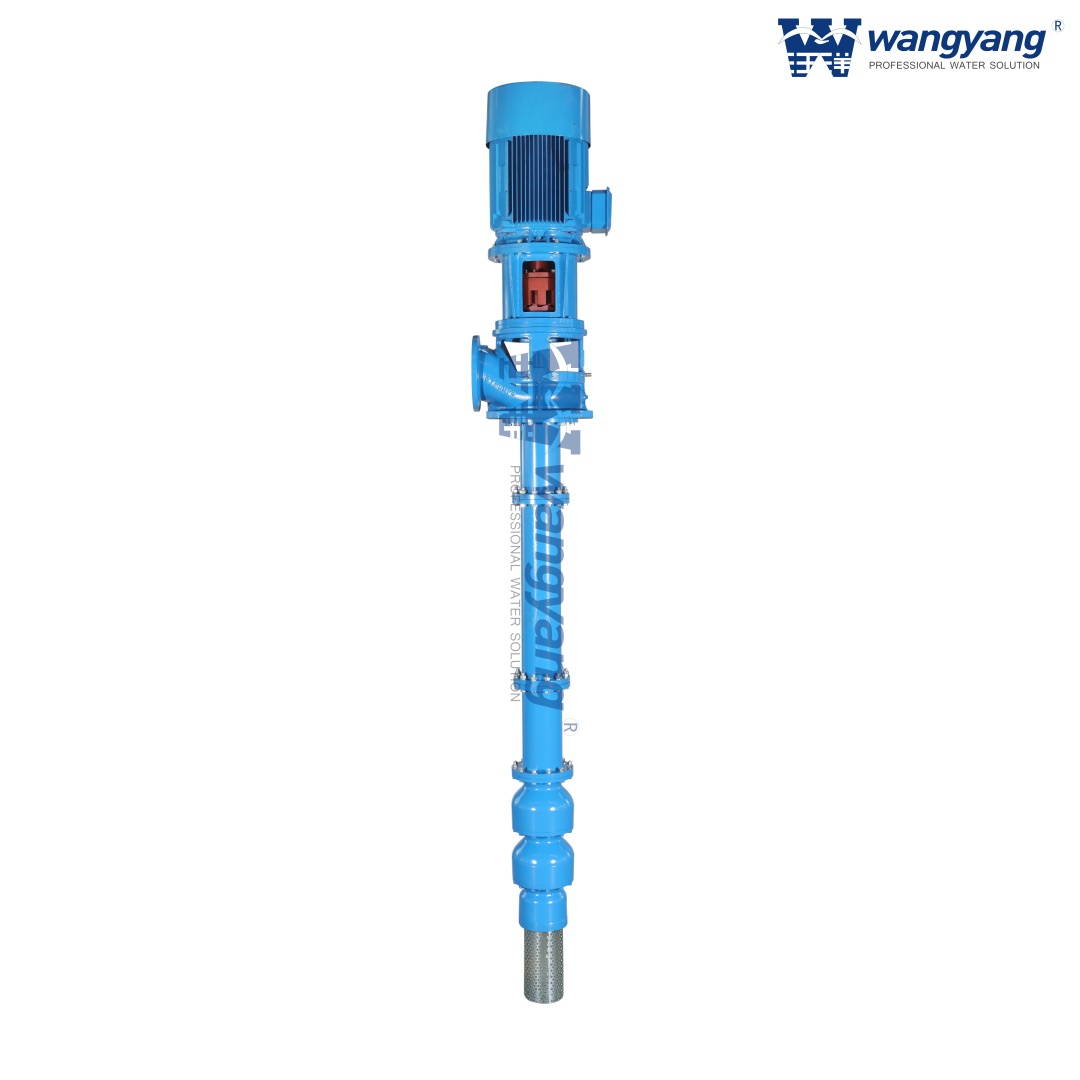

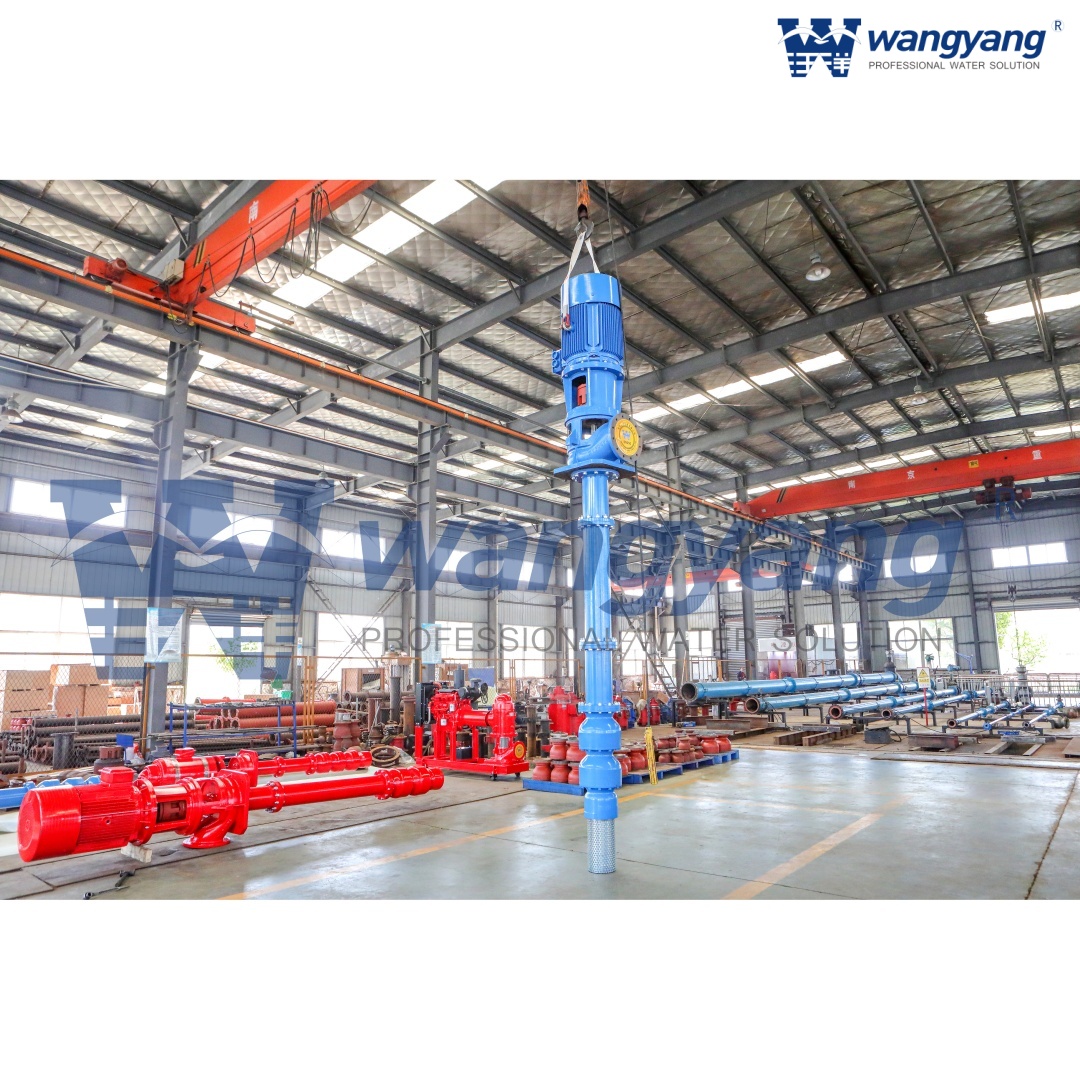

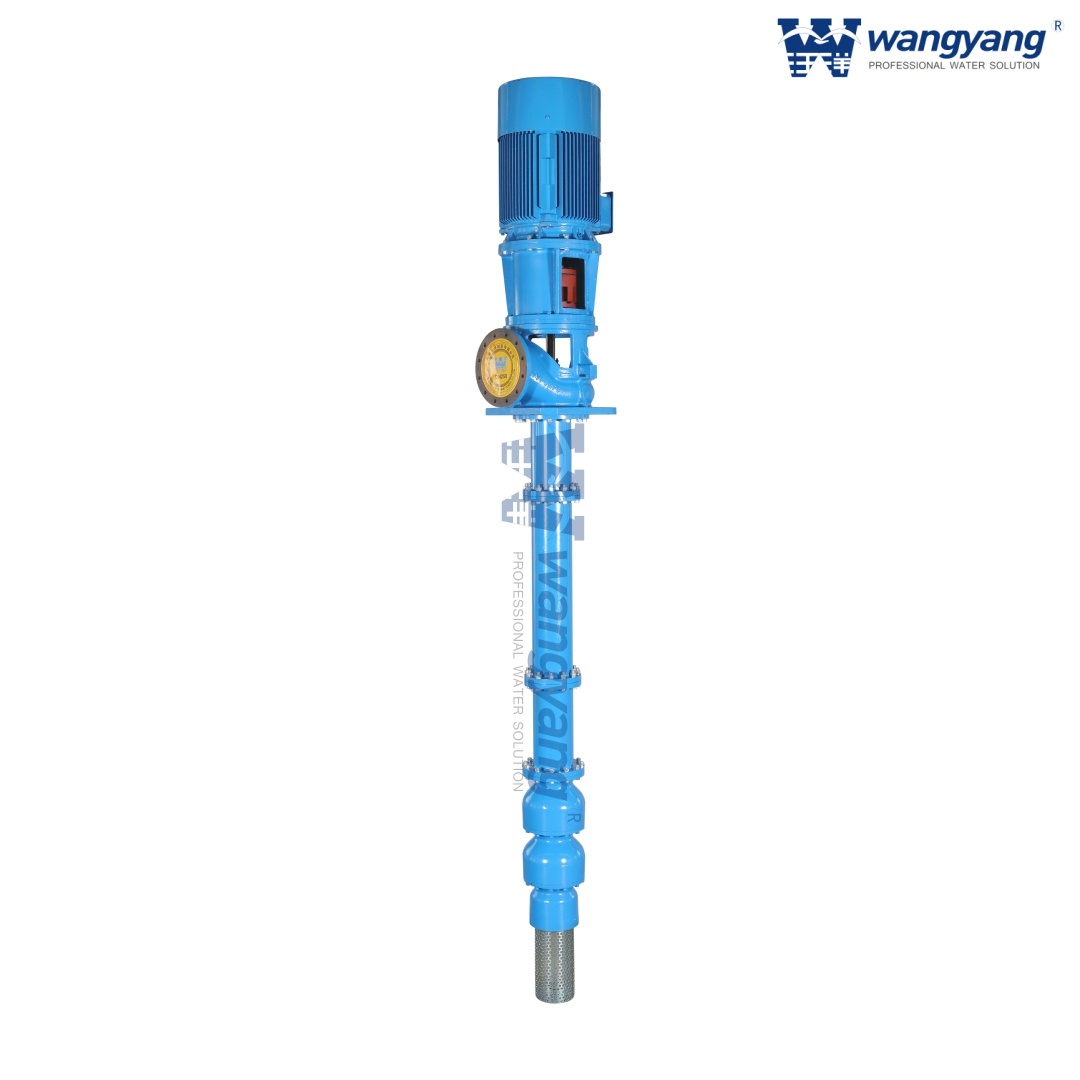

Vertical Turbine Pump with VSS Motor

The Vertical Turbine Pump with VSS Motor by Wangyang utilizes advanced U.S. turbine pump design techniques, offering high efficiency and long service life. It features a robust hydraulic model, energy-saving capabilities, and a sand protection system to prevent bearing damage. Ideal for applications such as water treatment, irrigation, mining, and fire-fighting, it ensures reliable performance and cost savings across various industries.

Availability:

Quantity:



Inquire

Description

Specificaitons

Applications

Model Features

Installation

Using state-of-the-art techniques from USA in turbine pump design, Wangyang vertical turbine pump covers a wide range of hydraulic conditions to meet virtually every pumping service in the industry with optimum efficiency.

Advantage of Vertical Turbine Pump

Feature	Description
Hydraulic Model and Structure Design	Advanced design with Ashland process for core, epoxy-coated impeller blades, and carefully selected materials for excellent performance and long service life.
Efficiency	2-8% higher efficiency than local pumps (J, JD, JC), with a wide efficiency curve offering an additional 10-20% separation range, leading to significant energy savings.
Sand Protection	Labyrinth structure in the sand-throwing apparatus prevents sand from entering the bearing.
Impeller and Motor Shaft Support	Copper bearings support the impeller and motor shaft, with shaft runout controlled within 0.13mm (American standard), ensuring smooth operation and low noise.
Pump Discharge Head	Aesthetic design with a convenient repair window for easy packing replacement.
Cost Efficiency	Smaller working parts (around 1 inch in diameter) compared to domestic pumps, reducing user costs and suitable for well pumping applications.

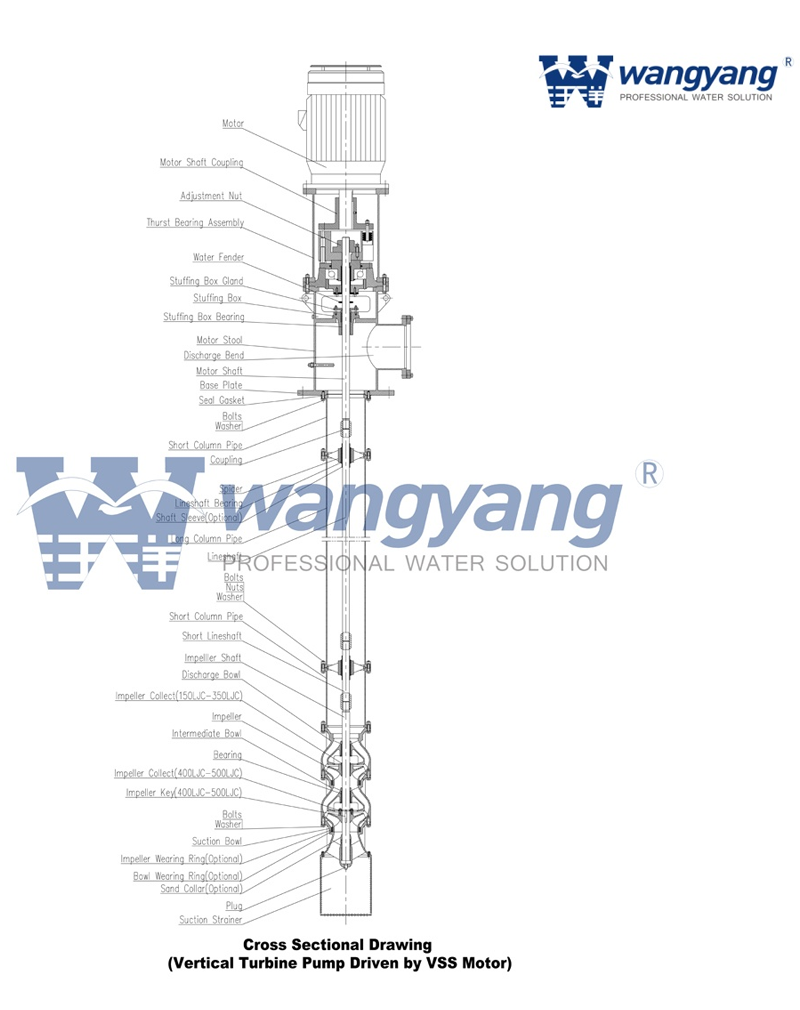

Cross Sectional Drawing

Specifications of Vertical Turbine Pump

• Capacities to 20000 GPM (4500 m3/h)

• Heads to 1600 feet (500m)

• Temperatures to 500° F (260° C)

• Bowl sizes from 6" to 28"

• Casted or Fabricated discharge head and flanged column

• Flanged bowl construction

• Stainless steel shafting

• Alloy construction with external flush of critical wear areas available for corrosive/abrasive services

• Built-in alignment and simple piping for less costly installation and ease of maintenance/reduced downtime

Material of Vertical Turbine Pump

Bowl: Cast Iron, Ductile Iron, Stainless Steel, Duplex SS, Bronze

Shaft: Carbon Steel, Stainless Steel, Duplex SS, 17-4PH SS, Model K500

Impeller: Cast Iron, Ductile Iron, Stainless Steel, Duplex SS, Bronze

Discharge head: Cast Iron, Ductile Iron, Fabricated Steel, Stainless Steel, Duplex SS

The Vertical Turbine Pump is constructed using high-quality materials to ensure durability and superior performance. The bowl and impeller are made from options such as cast iron, ductile iron, stainless steel, duplex SS, and bronze, offering excellent corrosion resistance and strength. The shaft is available in carbon steel, stainless steel, duplex SS, 17-4PH SS, and Model K500, ensuring high resilience. The discharge head is made from cast iron, ductile iron, fabricated steel, stainless steel, and duplex SS, providing robust support and longevity across various applications. These material choices contribute to the pump's reliability and long service life.

Applications of Vertical Turbine Pump

Utility Circulating Water	Waster Plants	Industrial Process
Golf Courses/Turf Irrigation	Agricultural Irrigation	Dewatering
Mining	Cooling Water	Water Parks
Snowing	Flood Control	Seawater and Raw Water Intake
Fire-Fighting	Condenser Circulating Water	Ash Sluice

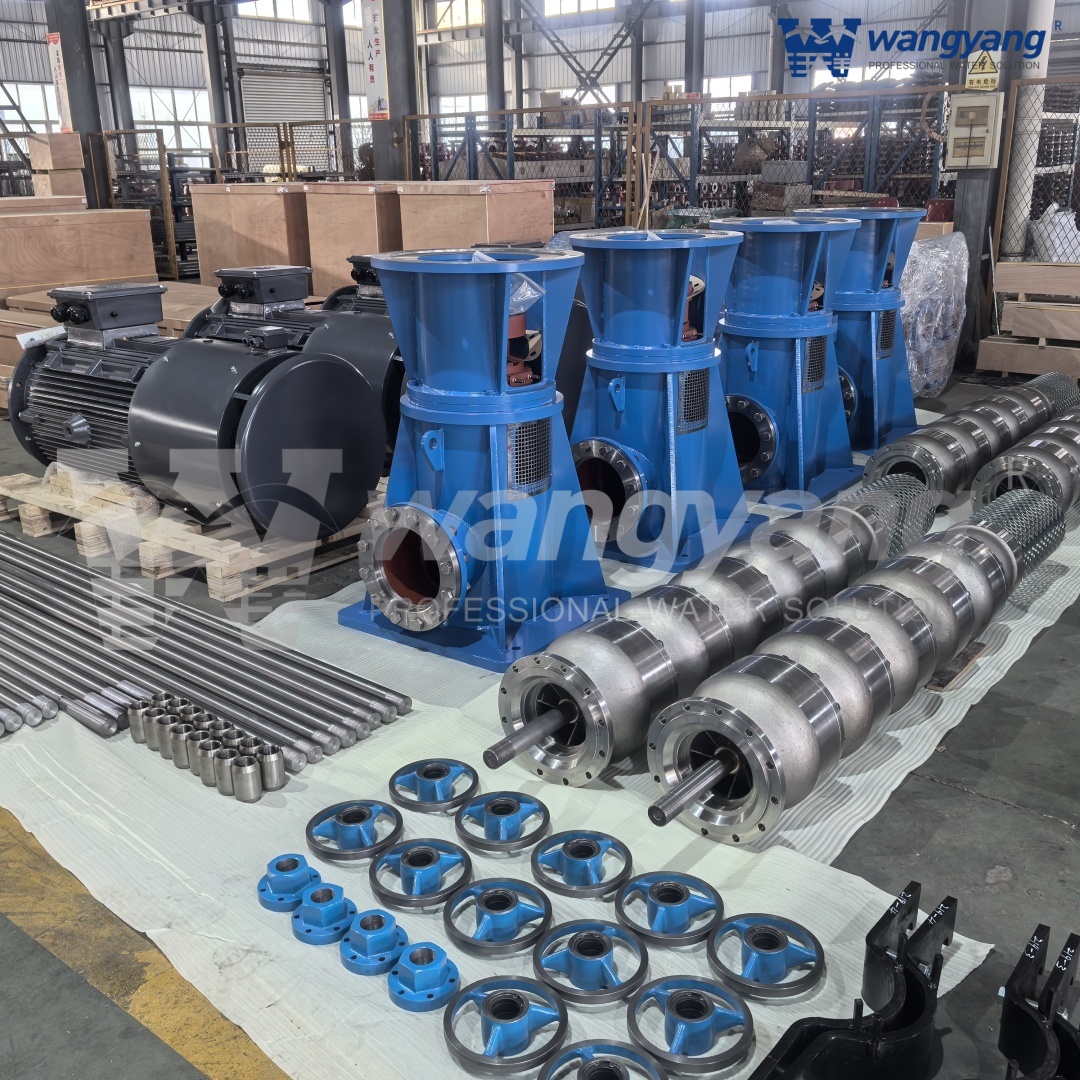

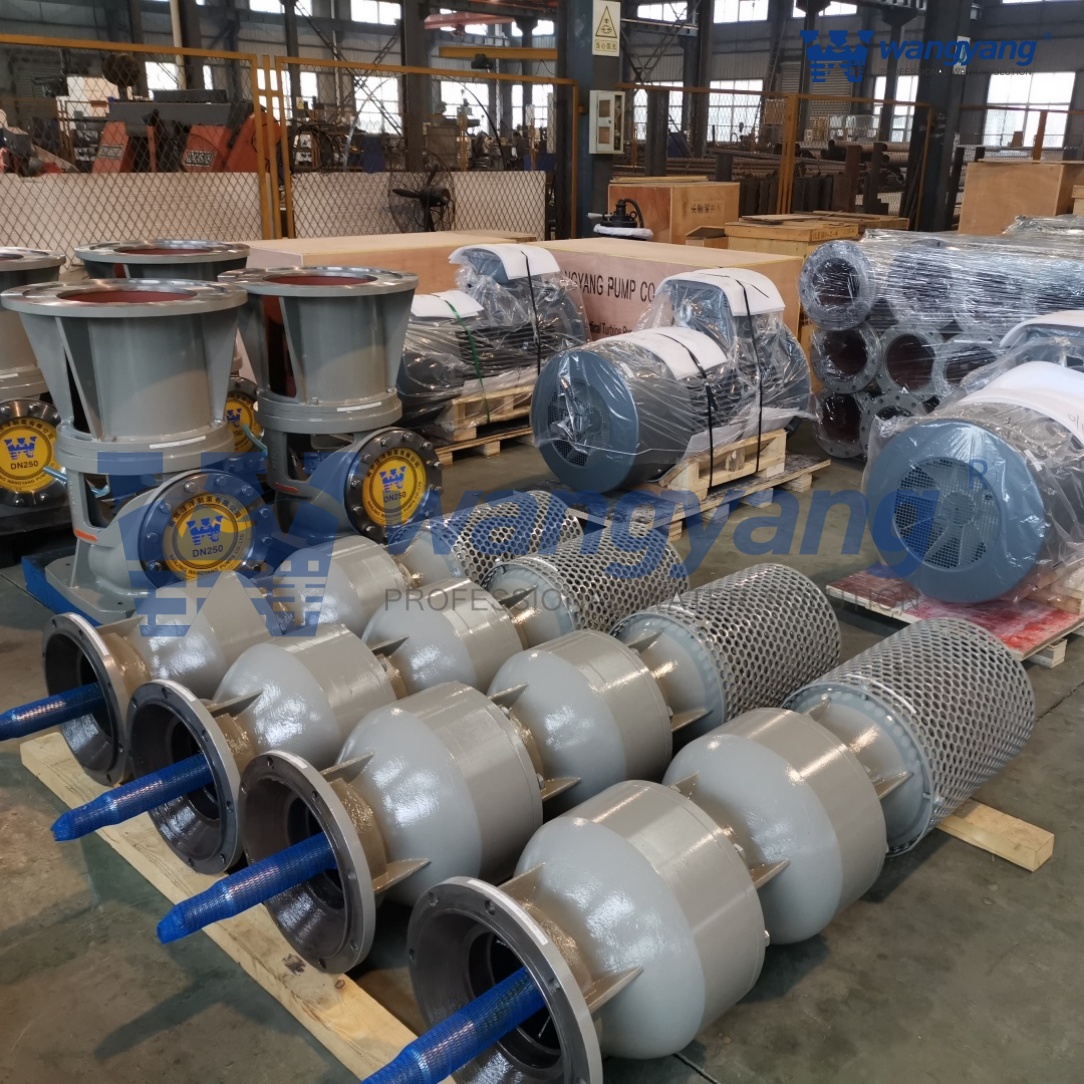

1. Pump Bowl Assembly

The bowl assembly is the heart of the vertical turbine pump. The impeller and diffuser type casing are designed to deliver the head and capacity that your system requires in the most efficient way possible. The fact that the vertical turbine pump can be multi-staged allows maximum flexibility both in the initial pump selection and in the event that future system modifications require a change in the pump rating.

A variety of material options allows the selection of a pump best suited for even the most severe services. The many bowl assembly options available ensure that the vertical turbine pump satisfies the users’ needs for safe, efficient, reliable and maintenance-free operation.

2.Flanged Column

Column sections are provided with flanged ends incorporating registered fits for ease of alignment during assembly to ensure concentricity. Our standard bearing retainers are threaded into the column section. Product lubricated lineshaft is recommended for ease of maintenance. Renewable shaft sleeve or hard facing of shaft available for longer life. The enclosed lineshaft is protected by water flushing the enclosing tube bearing on corrosive / abrasive services. Oil lubricated lineshaft available on long settings.

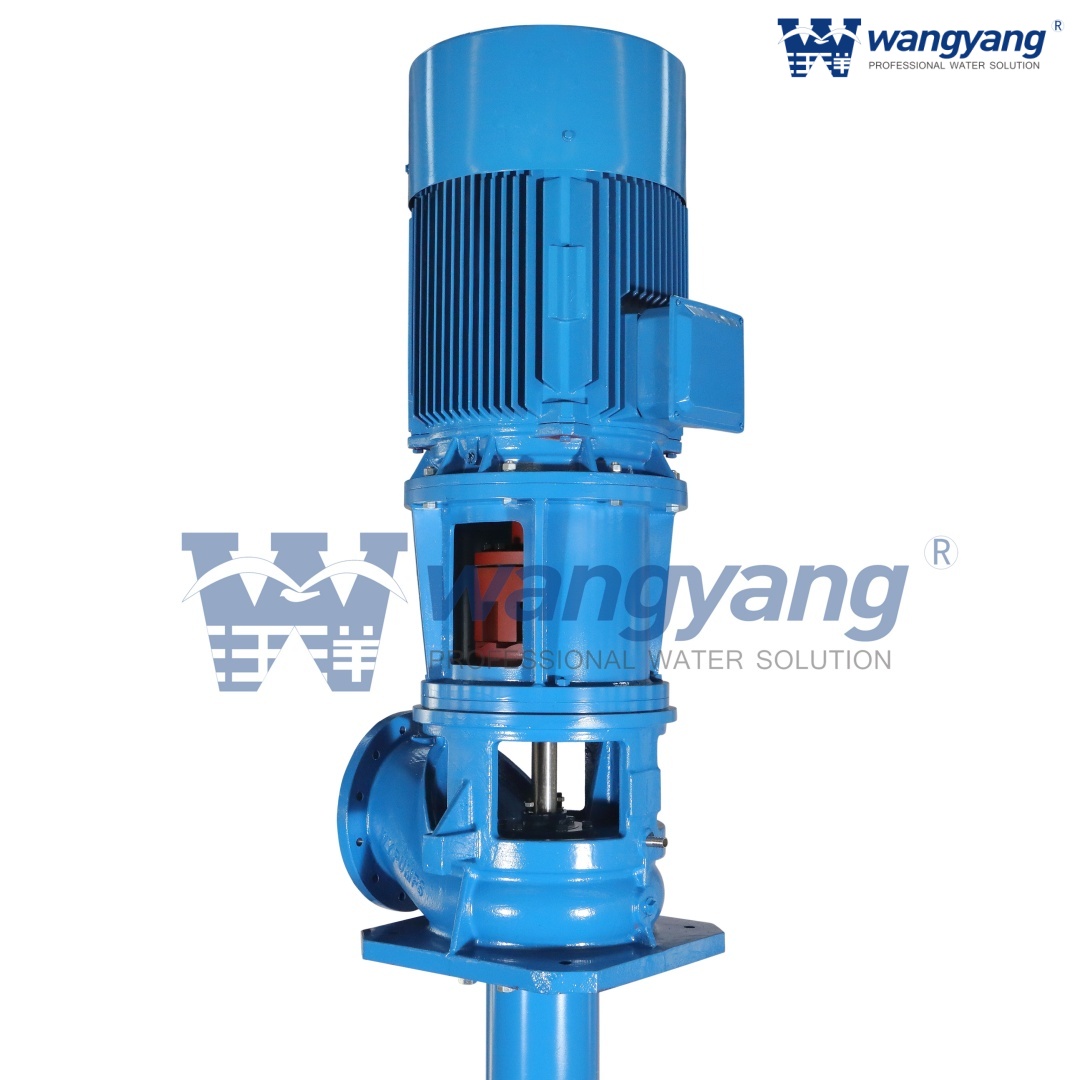

3.Discharge Head

The discharge head functions to change the direction of flow from vertical to horizontal and to couple the pump to the system piping in addition to supporting and aligning the driver. Discharge head accommodates all types of driver configurations. Optional sub-base can be supplied. Wangyang offers three basic types for maximum flexibility.

Hydraulic Coverage of Vertical Turbine Pump
