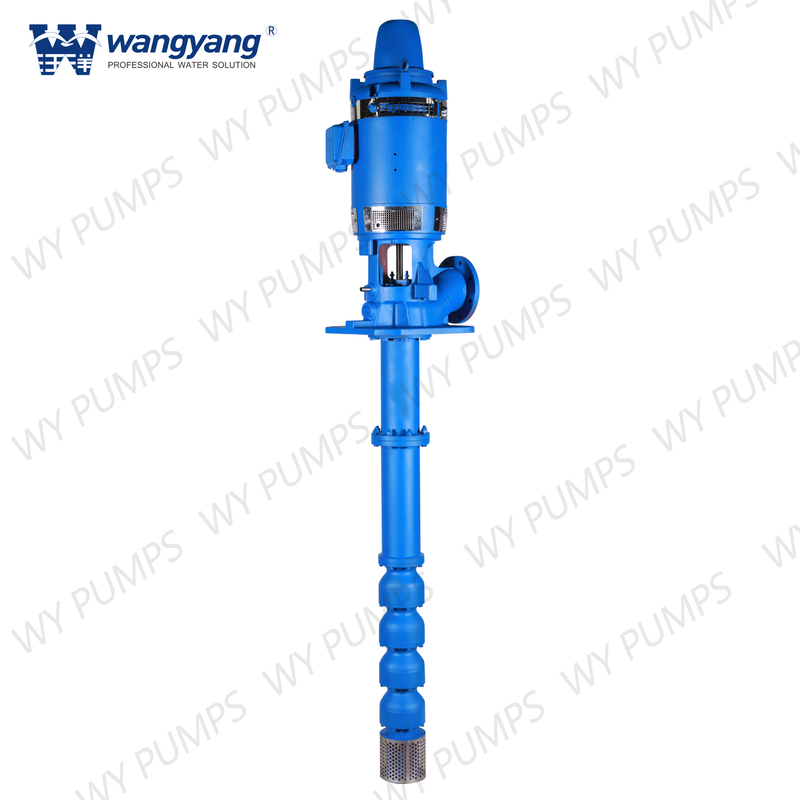

Axial Flow Vertical Turbine Pump with Hollow Shaft Motor

Axial Flow Vertical Turbine Pump with Hollow Shaft Motor

Quantity:
Availability:





Inquire Add to Basket

Brand:
WANGYANG PUMPS

Introduction of Vertical Turbine Pump

Introduction of Vertical Turbine Pump

Vertical single stage or multistage pump with mixed or axial flow impeller design, broad hydraulic coverage provides best selection to meet specific operating conditions. Fabricated or cast iron, surface or underground discharge head, shaft and bearing combinations promote long life with options of open or enclose line shaft construction. It can be driven by VHS NEMA Standard motor, VSS motor or diesel engine through right angle gear box.

Capacity: ≤5000m³/h

Head: ≤350 m

Motor Power: 5.5-1600kW

Rated Voltage: 380V, 6kV, 10kV

Well Diameter: 100- 950mm

Max. Discharge Diameter: 650mm

Application of Vertical Turbine Pump

Municipal	Waster Plants	Commercial/Industrial
Golf Courses/Turf Irrigation	Agricultural Irrigation	Dewatering
Mining	Cooling Tower	Water Parks
Snowing	Flood Control	River/Sea Water Circulation
Fire-Fighting	etc

Material of Vertical Turbine Pump

Bowl: Cast iron, Stainless steel

Shaft: Stainless steel

Impeller: Cast iron, Bronze or Stainless steel

Discharge head: Cast iron or carbon steel

Structure Explanation

Model Number Description

Installation

Basic Parameters

Type	Stage	Capacity (m³/h)		Head (m)		Motor Power	String Quantity	Rotating Speed	Effi.	Dia.
Type	i	额定值	工作范围	额定值	工作范围	kW	mm	r/min	%	mm
100LJC10-4×	8	10	6.5-12	32	25-35	5.5	8	2940	62	92
	10			40	32-44	5.5
	12			48	38-53	5.5
	14			52	44-62	5.5
	16			64	51-70	5.5
	18			72	57-79	5.5
	20			80	64-88	5.5
	22			88	70-97	5.5
	24			96	76-106	5.5
	26			104	83-115	5.5
150LJC10-9×	8	10	8-16	72	54-75	5.5	12	2940	62	138
	9			81	61-84	5.5
	10			90	67-93	5.5
	11			99	61-102	7.5
	12			108	81-112	7.5
	13			117	87-121	7.5
	14			126	94-130	7.5
	15			135	101-140	11
	16			144	108-149	11
	17			153	114-158	11
	18			162	121-167	11
	19			171	128-176	11
150LJC20-11×	4	20	15-24	44	39-48	5.5	12	2940	67	150
	5			55	49-60	5.5
	6			66	59-72	7.5
	7			77	69-84	7.5
	8			88	78-96	11
	10			110	98-120	11
	12			121	118-144	15
	14			154	134-168	15
150LJC30-12.5×	5	30	21-36	62.5	51-69	11	8	2940	70	150
	6			75	61-83	11
	7			87.5	71-96	15
	8			100	82-110	15
	9			112.5	92-124	15
	10			125	102-138	18.5
	11			137.5	112-152	18.5
	12			150	123-165	22
	13			162.5	133-180	22
150LJC40-13.5×	4	40	30-46	54	50-62	11	8	2940	72	150
	5			67.5	62-77	15
	6			81	75-93	15
	7			94.5	87-108	18.5
	8			108	100-124	18.5
	9			121.5	112-139	22
	10			135	125-155	30
	11			148.5	137-170	30
	12			162	150-186	30
150LJC50-13×	4	50	30-55	52	46-66	11	8	2940	74	150
	5			65	57-82	15
	6			78	69-99	18.5
	7			91	80-115	22
	8			104	92-132	22
	9			117	103-148	30
225LJC60-20×	2	60	40-76	40	30-44	11	9	2940	75	181
	3			60	45-66	18.5
	4			80	60-88	22
	5			100	75-110	30
	6			120	90-132	37
	7			140	105-154	37
225LJC80-22.5×	2	80	60-100	45	38-49	15	9	2940	75	181
	3			67.5	57-73.5	22
	4			90	76-98	30
	5			112.5	95-122	37
225LJC90-20×	2	90	67-119	40	28-45	15	10	2940	75	190
	3			60	43-68	22
	4			80	57-91	30
	5			100	72-114	37
225LJC125-18×	1	125	89-142	18	15-22	11	10	2940	76	190
	2			36	30-43	18.5
	3			54	45-65	30
	4			72	60-86	37
250LJC130-8.5×	5	130	89-150	42.5	35-49	22	10	1460	78	242
	6			51	42-59	30
	7			59.5	49-69	37
	8			68	56-79	37
	9			76.5	63-89	45
	10			85	70-99	45
	11			93.5	77-109	55
	12			102	84-119	55
300LJC160-11.5×	3	160	125-200	34.5	28.5-39	22	14	1460	80	295
	4			46	38-52	30
	5			57.5	47.5-65	37
	6			69	57-78	45
	7			80.5	66.5-91	55
	8			92	76-104	75
	9			103.5	85.5-117	75
	10			115	95-130	75
	11			126.5	104.5-143	90
	12			138	114-156	90
300LJC185-12×	2	185	130-235	24	18.9-27	18.5	14	1460	80	295
	3			36	28.4-40	30
	4			48	37.8-54	37
	5			60	47.2-67	45
	6			72	56.7-81	55
	7			84	66-94	75
	8			96	75.6-108	75
	9			108	85-121	90
	10			120	94.5-135	90
300LJC220-13.5×	2	220	154-264	27	22-29	22	12	1460	80	295
	3			40.5	34-44	37
	4			54	45-59	45
	5			67.5	57-74	55
	6			81	68-89	75
	7			94.5	79-104	90
	8			108	91-119	90
350LJC300-15×	2	300	230-370	30	23-35	37	12	1460	80	346
	3			45	34.5-52.5	55
	4			60	46-70	75
	5			75	57.5-87.5	90
	6			90	69-105	110
	7			105	80.5-122.5	132
350LJC370-16×	1	370	270-460	16	11.5-19	30	12	1460	80	346
	2			32	23-38	55
	3			48	34.5-57	75
	4			64	46-76	90
	5			80	57.5-95	110
	6			96	69-114	132
350LJC400-18×	1	400	280-480	18	14-20.8	37	12	1460	80	346
	2			36	29-41	55
	3			54	43-62	90
	4			72	58-83	110
	5			90	73-104	132
400LJC450-30×	1	450	290-540	30	25-35	55	22	1475	80	430
	2			60	50-70	110
	3			90	75-105	150
	4			120	100-140	200
	5			150	125-175	250
400LJC550-27×	1	550	400-850	27	17.5-29	55	20	1475	81	430
	2			54	35-58	110
	3			81	52.5-87	180
	4			108	70-116	225
	5			135	87.5-145	280
450LJC650-32×	1	650	520-850	32	22-35	90	20	1475	80	520
	2			64	44-70	180
	3			96	66-105	250
	4			128	88-140	350
	5			160	110-175	400
450LJC900-30×	1	900	600-1100	30	24-34	110	20	1475	82	520
	2			60	48-68	225
	3			90	72-102	315
	4			120	96-136	400
	5			150	120-170	520
500LJC1000-29×	1	1000	790-1300	29	21-33	110	20	1475	83	600
	2			58	42-66	225
	3			87	63-99	350
	4			116	84-132	450
500LJC1250-30×	1	1250	800-1750	30	18.5-36	150	17	1475	84	600
	2			60	37-72	280
	3			90	55.5-108	400
	4			120	74-144	560
500LJC2000-31×	1	2000	1500-2400	31	25-36	250	22	1475	80	670
500LJC2000-31×	2	2000	1500-2400	62	50-72	500	22	1475	80	670

FAQ:

Q: What is the MOQ for your vertical turbine pump?

A: We accept the order with even one set of the pump and can do any customized work for our clients.

Q: Which countries can you sell to?
