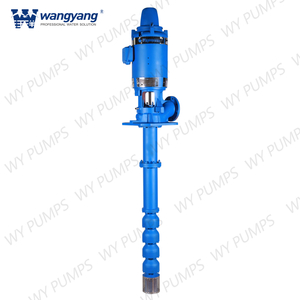

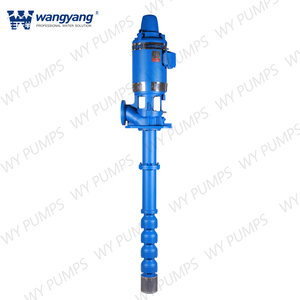

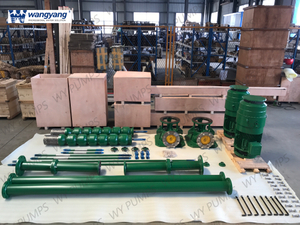

Introduction of Vertical Turbine Pump
Vertical single stage or multistage pump with mixed or axial flow impeller design, broad hydraulic coverage provides best selection to meet specific operating conditions. Fabricated or cast iron, surface or underground discharge head, shaft and bearing combinations promote long life with options of open or enclose line shaft construction. It can be driven by VHS NEMA Standard motor, VSS motor or diesel engine through right angle gear box.
Capacity: ≤5000m³/h
Head: ≤350 m
Motor Power: 5.5-1600kW
Rated Voltage: 380V, 6kV, 10kV
Well Diameter: 100- 950mm
Max. Discharge Diameter: 650mm
Application of Vertical Turbine Pump
Municipal | Waster Plants | Commercial/Industrial |
Golf Courses/Turf Irrigation | Agricultural Irrigation | Dewatering |
Mining | Cooling Tower | Water Parks |
Snowing | Flood Control | River/Sea Water Circulation |
Fire-Fighting | etc |
Material of Vertical Turbine Pump
Bowl: Cast iron, Stainless steel
Shaft: Stainless steel
Impeller: Cast iron, Bronze or Stainless steel
Discharge head: Cast iron or carbon steel
Structure Explanation
Model Number Description
Installation
Basic Parameters
Type | Stage
|
Capacity (m3/h)
| Head (m)
| Motor Power | String Quantity | Rotating Speed | Effi. | Dia. | ||
i | Rated | Range | Rated | Range | kW | mm | r/min | % | mm | |
100LJC10-4× | 8 | 10 | 6.5-12 | 32 | 25-35 | 5.5 | 8 | 2940 | 62 | 92 |
10 | 40 | 32-44 | 5.5 | |||||||
12 | 48 | 38-53 | 5.5 | |||||||
14 | 52 | 44-62 | 5.5 | |||||||
16 | 64 | 51-70 | 5.5 | |||||||
18 | 72 | 57-79 | 5.5 | |||||||
20 | 80 | 64-88 | 5.5 | |||||||
22 | 88 | 70-97 | 5.5 | |||||||
24 | 96 | 76-106 | 5.5 | |||||||
26 | 104 | 83-115 | 5.5 | |||||||
150LJC10-9× | 8 | 10 | 8-16 | 72 | 54-75 | 5.5 | 12 | 2940 | 62 | 138 |
9 | 81 | 61-84 | 5.5 | |||||||
10 | 90 | 67-93 | 5.5 | |||||||
11 | 99 | 61-102 | 7.5 | |||||||
12 | 108 | 81-112 | 7.5 | |||||||
13 | 117 | 87-121 | 7.5 | |||||||
14 | 126 | 94-130 | 7.5 | |||||||
15 | 135 | 101-140 | 11 | |||||||
16 | 144 | 108-149 | 11 | |||||||
17 | 153 | 114-158 | 11 | |||||||
18 | 162 | 121-167 | 11 | |||||||
19 | 171 | 128-176 | 11 | |||||||
150LJC20-11× | 4 | 20 | 15-24 | 44 | 39-48 | 5.5 | 12 | 2940 | 67 | 150 |
5 | 55 | 49-60 | 5.5 | |||||||
6 | 66 | 59-72 | 7.5 | |||||||
7 | 77 | 69-84 | 7.5 | |||||||
8 | 88 | 78-96 | 11 | |||||||
10 | 110 | 98-120 | 11 | |||||||
12 | 121 | 118-144 | 15 | |||||||
14 | 154 | 134-168 | 15 | |||||||
150LJC30-12.5× | 5 | 30 | 21-36 | 62.5 | 51-69 | 11 | 8 | 2940 | 70 | 150 |
6 | 75 | 61-83 | 11 | |||||||
7 | 87.5 | 71-96 | 15 | |||||||
8 | 100 | 82-110 | 15 | |||||||
9 | 112.5 | 92-124 | 15 | |||||||
10 | 125 | 102-138 | 18.5 | |||||||
11 | 137.5 | 112-152 | 18.5 | |||||||
12 | 150 | 123-165 | 22 | |||||||
13 | 162.5 | 133-180 | 22 | |||||||
150LJC40-13.5× | 4 | 40 | 30-46 | 54 | 50-62 | 11 | 8 | 2940 | 72 | 150 |
5 | 67.5 | 62-77 | 15 | |||||||
6 | 81 | 75-93 | 15 | |||||||
7 | 94.5 | 87-108 | 18.5 | |||||||
8 | 108 | 100-124 | 18.5 | |||||||
9 | 121.5 | 112-139 | 22 | |||||||
10 | 135 | 125-155 | 30 | |||||||
11 | 148.5 | 137-170 | 30 | |||||||
12 | 162 | 150-186 | 30 | |||||||
150LJC50-13× | 4 |
50 |
30-55 | 52 | 46-66 | 11 | 8 | 2940 | 74 | 150 |
5 | 65 | 57-82 | 15 | |||||||
6 | 78 | 69-99 | 18.5 | |||||||
7 | 91 | 80-115 | 22 | |||||||
8 | 104 | 92-132 | 22 | |||||||
9 | 117 | 103-148 | 30 | |||||||
225LJC60-20× | 2 |
60 |
40-76 | 40 | 30-44 | 11 | 9 | 2940 | 75 | 181 |
3 | 60 | 45-66 | 18.5 | |||||||
4 | 80 | 60-88 | 22 | |||||||
5 | 100 | 75-110 | 30 | |||||||
6 | 120 | 90-132 | 37 | |||||||
7 | 140 | 105-154 | 37 | |||||||
225LJC80-22.5× | 2 | 80 | 60-100 | 45 | 38-49 | 15 | 9 | 2940 | 75 | 181 |
3 | 67.5 | 57-73.5 | 22 | |||||||
4 | 90 | 76-98 | 30 | |||||||
5 | 112.5 | 95-122 | 37 | |||||||
225LJC90-20× | 2 |
90 |
67-119 | 40 | 28-45 | 15 | 10 | 2940 | 75 | 190 |
3 | 60 | 43-68 | 22 | |||||||
4 | 80 | 57-91 | 30 | |||||||
5 | 100 | 72-114 | 37 | |||||||
225LJC125-18× | 1 |
125 | 89-142 | 18 | 15-22 | 11 | 10 | 2940 | 76 | 190 |
2 | 36 | 30-43 | 18.5 | |||||||
3 | 54 | 45-65 | 30 | |||||||
4 | 72 | 60-86 | 37 | |||||||
250LJC130-8.5× | 5 |
130 |
89-150 | 42.5 | 35-49 | 22 | 10 | 1460 | 78 | 242 |
6 | 51 | 42-59 | 30 | |||||||
7 | 59.5 | 49-69 | 37 | |||||||
8 | 68 | 56-79 | 37 | |||||||
9 | 76.5 | 63-89 | 45 | |||||||
10 | 85 | 70-99 | 45 | |||||||
11 | 93.5 | 77-109 | 55 | |||||||
12 | 102 | 84-119 | 55 | |||||||
300LJC160-11.5× | 3 | 160 | 125-200 | 34.5 | 28.5-39 | 22 | 14 | 1460 | 80 | 295 |
4 | 46 | 38-52 | 30 | |||||||
5 | 57.5 | 47.5-65 | 37 | |||||||
6 | 69 | 57-78 | 45 | |||||||
7 | 80.5 | 66.5-91 | 55 | |||||||
8 | 92 | 76-104 | 75 | |||||||
9 | 103.5 | 85.5-117 | 75 | |||||||
10 | 115 | 95-130 | 75 | |||||||
11 | 126.5 | 104.5-143 | 90 | |||||||
12 | 138 | 114-156 | 90 | |||||||
300LJC185-12× | 2 | 185 | 130-235 | 24 | 18.9-27 | 18.5 | 14 | 1460 | 80 | 295 |
3 | 36 | 28.4-40 | 30 | |||||||
4 | 48 | 37.8-54 | 37 | |||||||
5 | 60 | 47.2-67 | 45 | |||||||
6 | 72 | 56.7-81 | 55 | |||||||
7 | 84 | 66-94 | 75 | |||||||
8 | 96 | 75.6-108 | 75 | |||||||
9 | 108 | 85-121 | 90 | |||||||
10 | 120 | 94.5-135 | 90 | |||||||
300LJC220-13.5× | 2 | 220 | 154-264 | 27 | 22-29 | 22 | 12 | 1460 | 80 | 295 |
3 | 40.5 | 34-44 | 37 | |||||||
4 | 54 | 45-59 | 45 | |||||||
5 | 67.5 | 57-74 | 55 | |||||||
6 | 81 | 68-89 | 75 | |||||||
7 | 94.5 | 79-104 | 90 | |||||||
8 | 108 | 91-119 | 90 | |||||||
350LJC300-15× | 2 | 300 | 230-370 | 30 | 23-35 | 37 | 12 | 1460 | 80 | 346 |
3 | 45 | 34.5-52.5 | 55 | |||||||
4 | 60 | 46-70 | 75 | |||||||
5 | 75 | 57.5-87.5 | 90 | |||||||
6 | 90 | 69-105 | 110 | |||||||
7 | 105 | 80.5-122.5 | 132 | |||||||
350LJC370-16× | 1 | 370 | 270-460 | 16 | 11.5-19 | 30 | 12 | 1460 | 80 | 346 |
2 | 32 | 23-38 | 55 | |||||||
3 | 48 | 34.5-57 | 75 | |||||||
4 | 64 | 46-76 | 90 | |||||||
5 | 80 | 57.5-95 | 110 | |||||||
6 | 96 | 69-114 | 132 | |||||||
350LJC400-18× | 1 | 400 | 280-480 | 18 | 14-20.8 | 37 | 12 | 1460 | 80 | 346 |
2 | 36 | 29-41 | 55 | |||||||
3 | 54 | 43-62 | 90 | |||||||
4 | 72 | 58-83 | 110 | |||||||
5 | 90 | 73-104 | 132 | |||||||
400LJC450-30× | 1 |
450 |
290-540
| 30 | 25-35 | 55 | 22 | 1475 | 80 | 430 |
2 | 60 | 50-70 | 110 | |||||||
3 | 90 | 75-105 | 150 | |||||||
4 | 120 | 100-140 | 200 | |||||||
5 | 150 | 125-175 | 250 | |||||||
400LJC550-27× | 1 | 550 | 400-850 | 27 | 17.5-29 | 55 | 20 | 1475 | 81 | 430 |
2 | 54 | 35-58 | 110 | |||||||
3 | 81 | 52.5-87 | 180 | |||||||
4 | 108 | 70-116 | 225 | |||||||
5 | 135 | 87.5-145 | 280 | |||||||
450LJC650-32× | 1 | 650 | 520-850 | 32 | 22-35 | 90 | 20 | 1475 | 80 | 520 |
2 | 64 | 44-70 | 180 | |||||||
3 | 96 | 66-105 | 250 | |||||||
4 | 128 | 88-140 | 350 | |||||||
5 | 160 | 110-175 | 400 | |||||||
450LJC900-30× | 1 | 900 | 600-1100 | 30 | 24-34 | 110 | 20 | 1475 | 82 | 520 |
2 | 60 | 48-68 | 225 | |||||||
3 | 90 | 72-102 | 315 | |||||||
4 | 120 | 96-136 | 400 | |||||||
5 | 150 | 120-170 | 520 | |||||||
500LJC1000-29× | 1 |
1000 | 790-1300 | 29 | 21-33 | 110 | 20 | 1475 | 83 | 600 |
2 | 58 | 42-66 | 225 | |||||||
3 | 87 | 63-99 | 350 | |||||||
4 | 116 | 84-132 | 450 | |||||||
500LJC1250-30× | 1 | 1250 | 800-1750 | 30 | 18.5-36 | 150 | 17 | 1475 | 84 | 600 |
2 | 60 | 37-72 | 280 | |||||||
3 | 90 | 55.5-108 | 400 | |||||||
4 | 120 | 74-144 | 560 | |||||||
500LJC2000-31× | 1 | 2000 | 1500-2400 | 31 | 25-36 | 250 | 22 | 1475 | 80 | 670 |
2 | 62 | 50-72 | 500 |
FAQ:

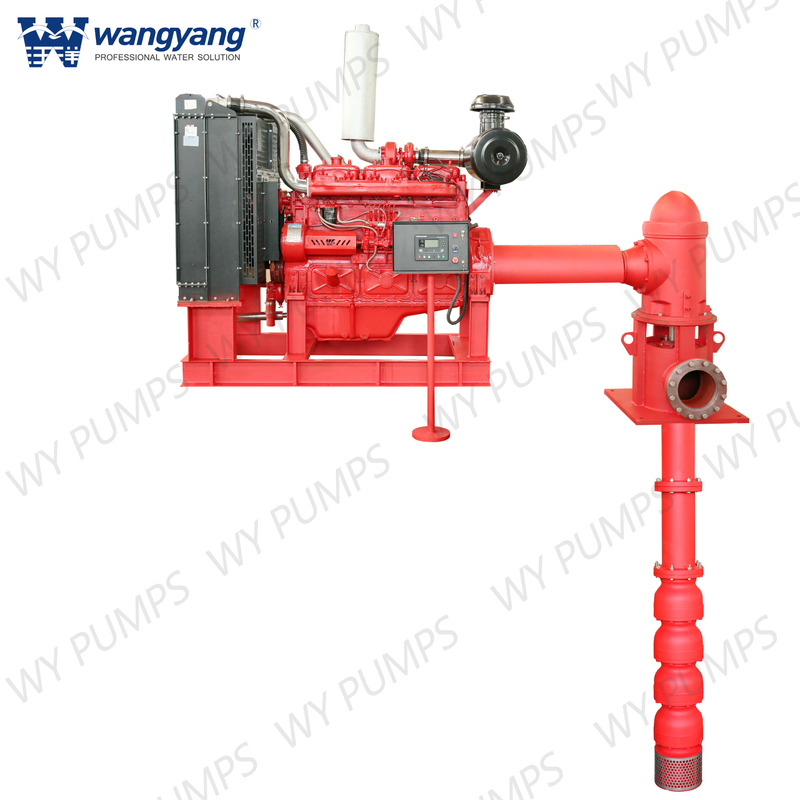

Q: What is the speed of your diesel engine vertical turbine pump?
A: As usual, we recommend our clients to use 1500rpm and 1800rpm diesel engine, but we can also provide the diesel engine vertical turbine pump with the speed of 3000rpm.
Q: How to connect the diesel engine and the pump for diesel engine vertcial turbine pump?
A: By right angle gearbox and cardan shaft.
