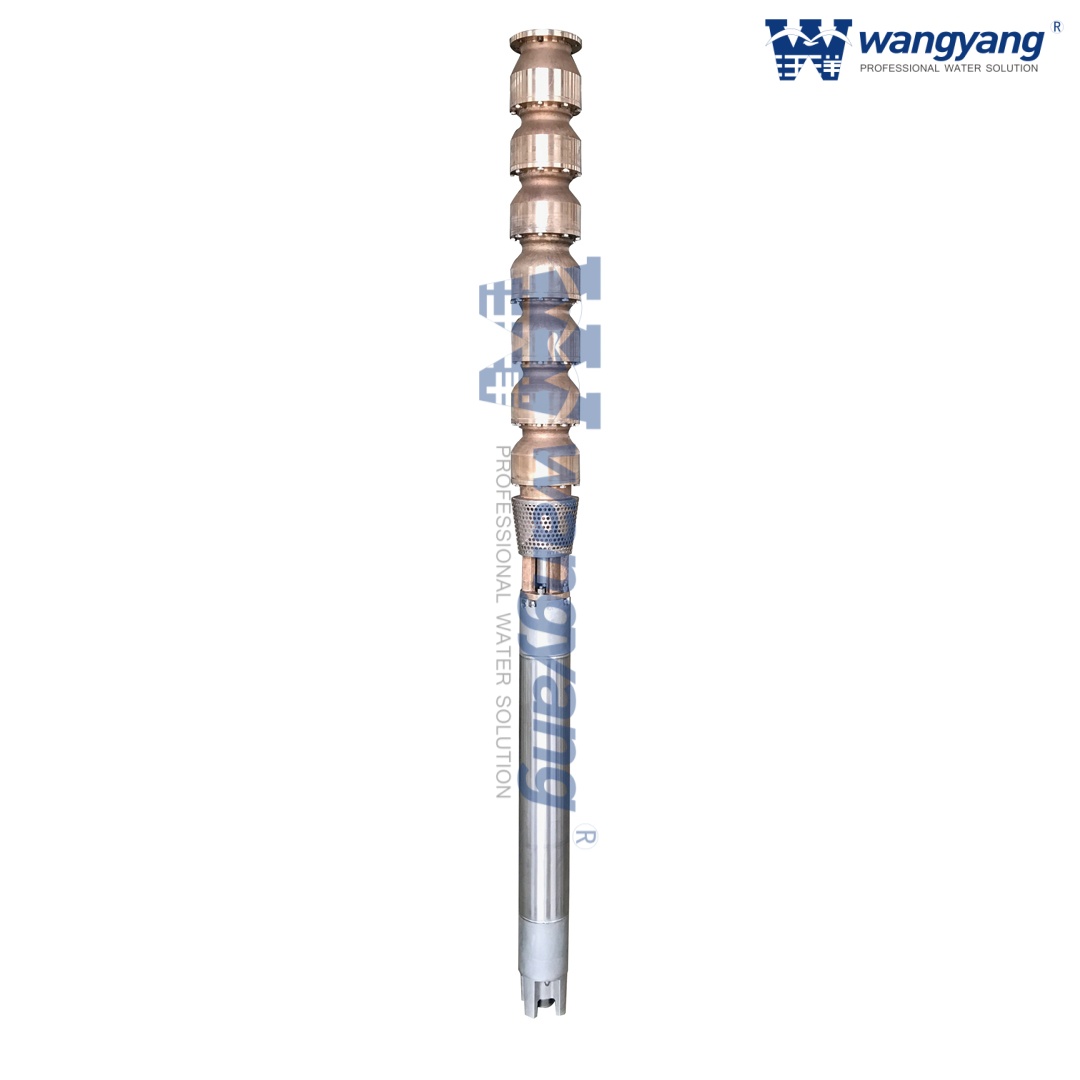

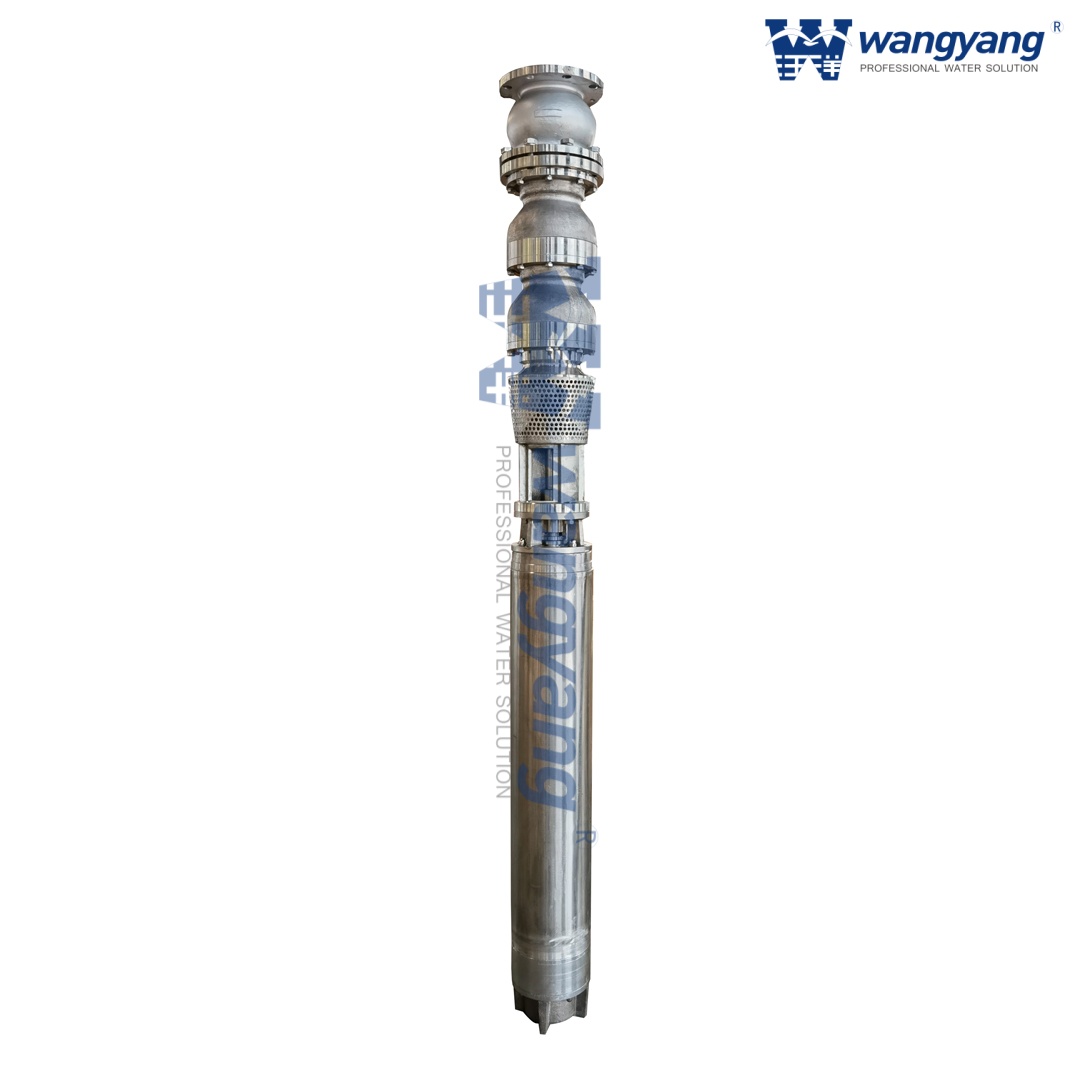

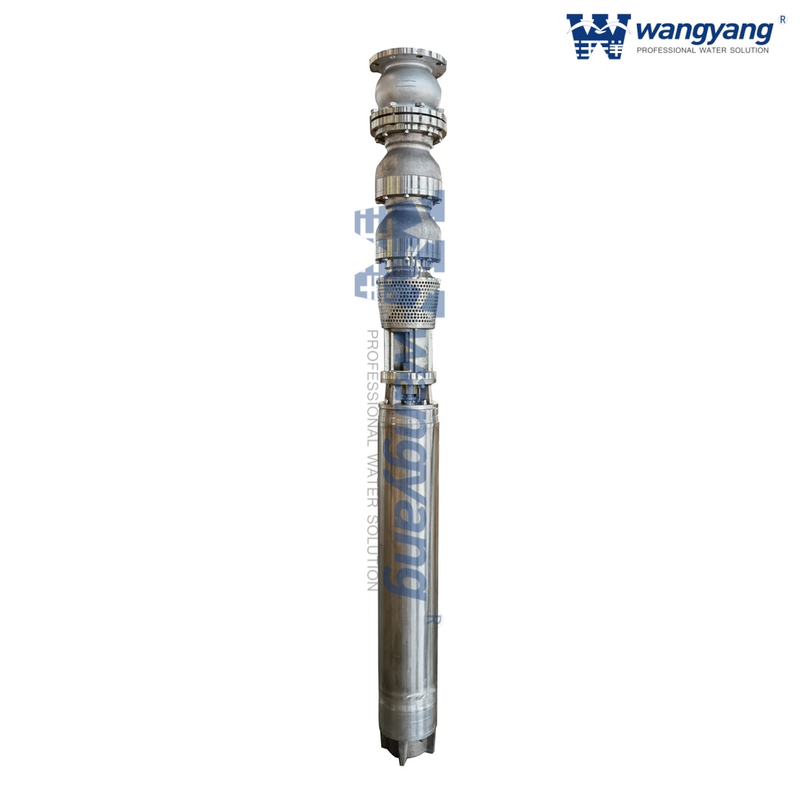

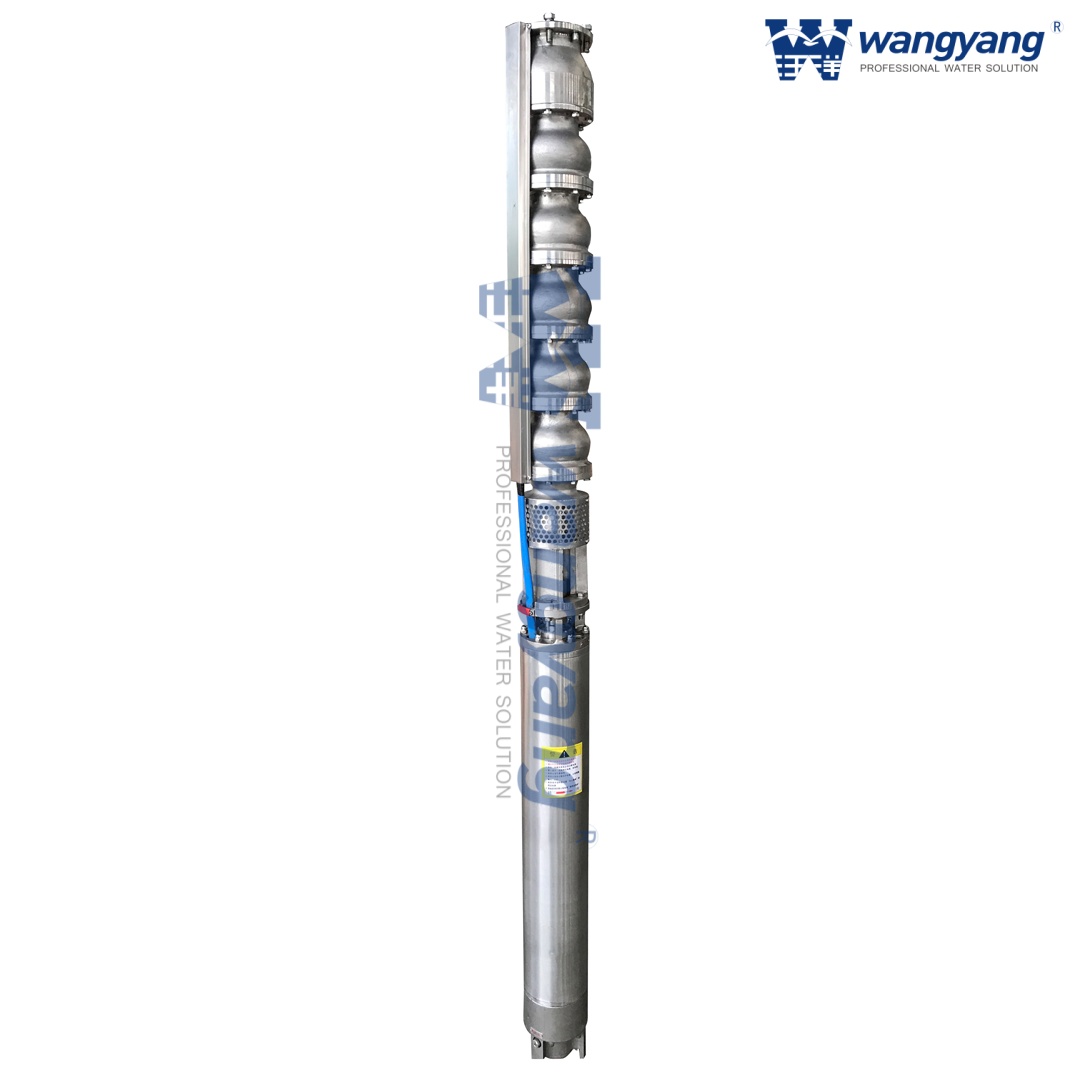

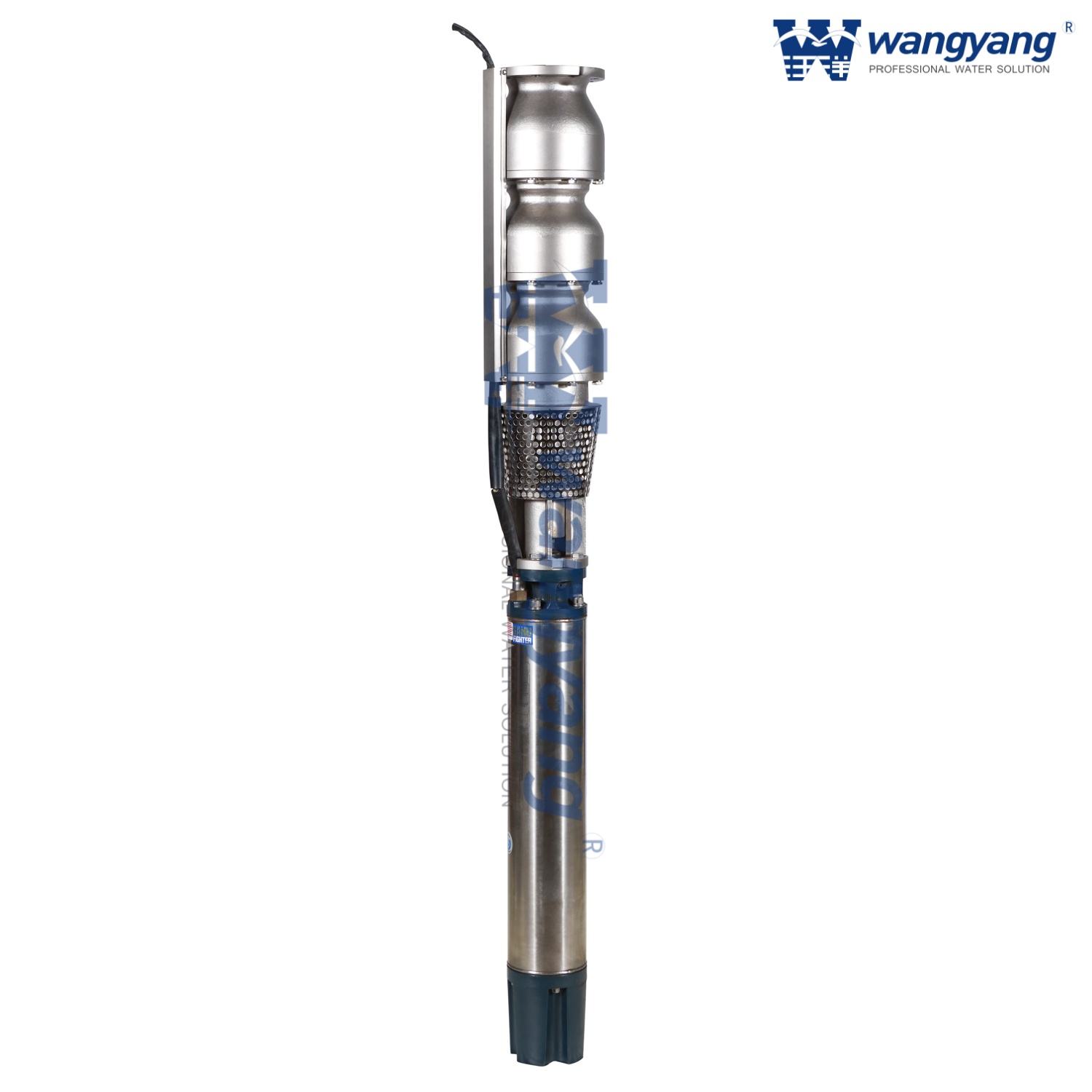

Stainless Steel Submersible Turbine Pump

The Stainless Steel Submersible Turbine Pump offers exceptional corrosion and hygiene resistance, making it ideal for potable water, seawater, and industrial fluids. Its precision-engineered components ensure consistent flow, reliable performance, and long-term durability across deep wells, urban supply networks, and demanding municipal or industrial pumping applications.

Availability:

Quantity:



Inquire

Description

Specification

Model Features

Installation

Hydraulic Performance

Wangyang submersible turbine pump consists of discharge adapter, bowl assembly, suction adapter, and submersible motor. The structure is reasonable, easy to install and maintain, and with advanced hydraulic model, they adopting the core produced with the resin sand and the vane runners adopting the core technique that coated with epoxy, high efficiency which is 2-5% higher than that of QJ type submersible deep well pump.

Usage

Submersible turbine pump is used to lift normal temperature clean water without corrosion from well, in discharging from cistern or river, supplying water for high-rise and mine drainage and for water supply and drainage in works and urban area, and lifting underground water, seawater lifting, and etc.

Design Advantage

• Submersible turbine pump is ideal for deep set applications where use of vertical turbine pump is impractical

• Complete unit of submersible turbine pump is installed underground resulting in space-saving, quiet operation, Long life / low maintenance - no lubrication, alignment

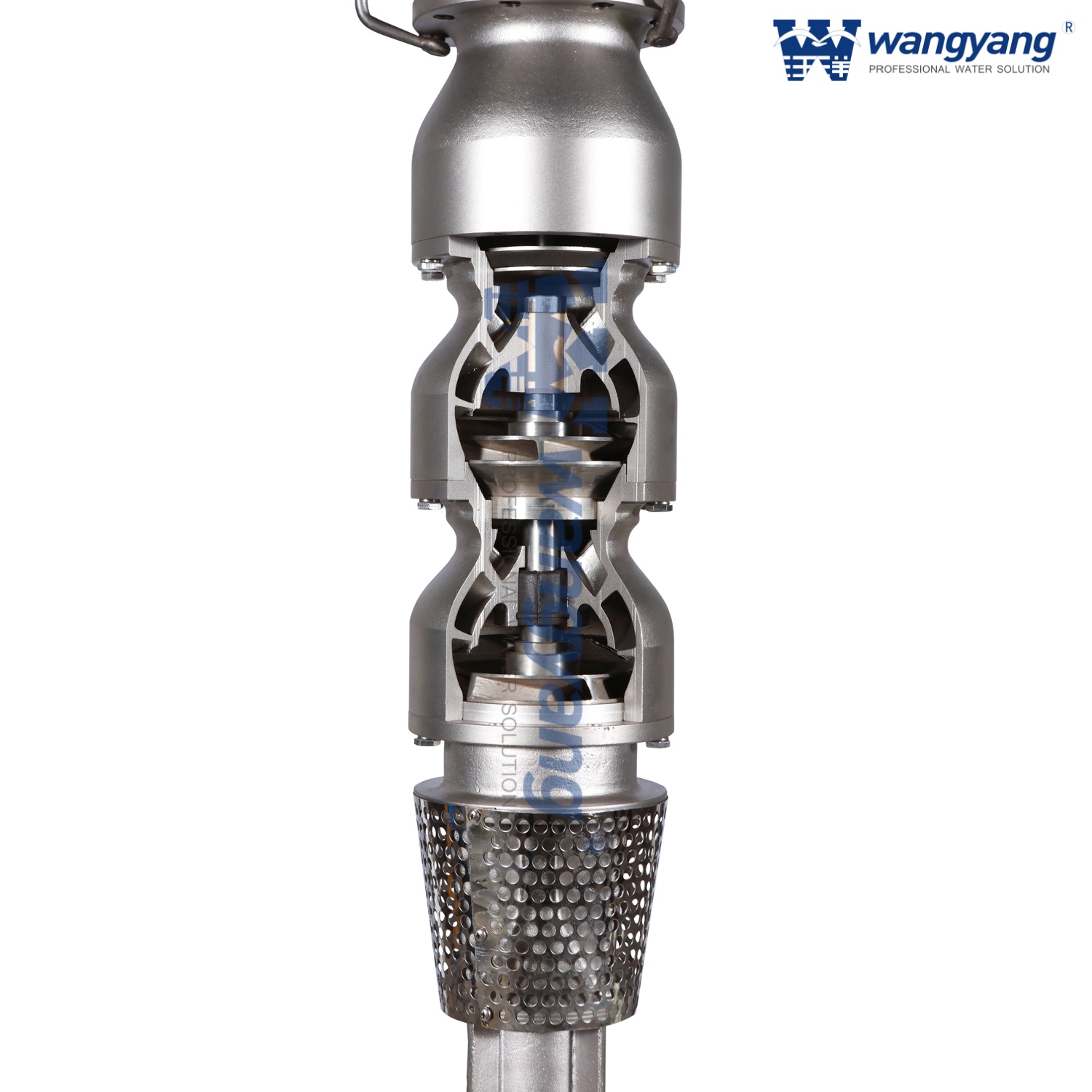

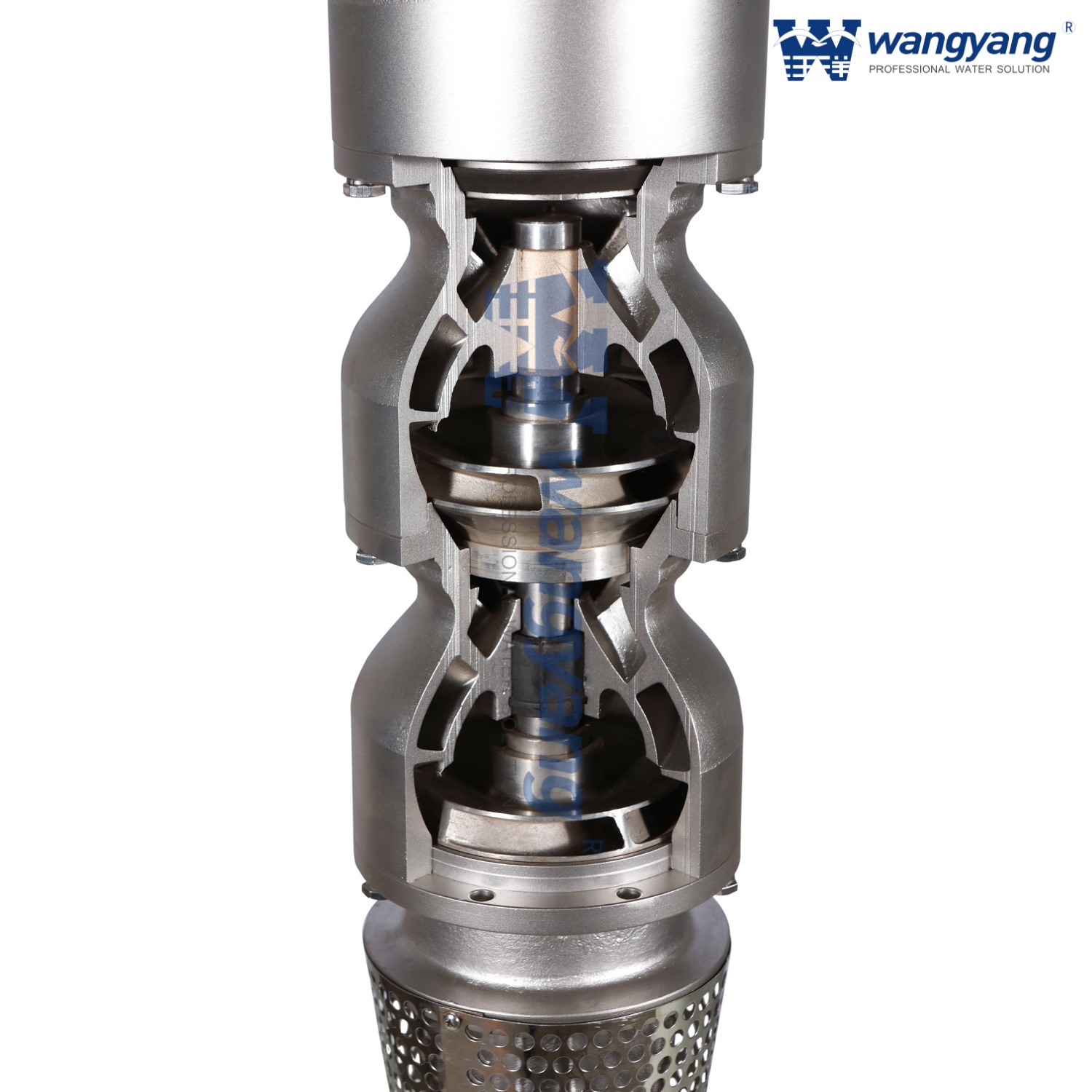

Structure Explanation

Bronze-Submersible-Turbine-Pump1

Specification

Capacity: <4500 m³/h
Supports high-volume water transfer for municipal, industrial, and potable water systems, ensuring efficient pumping across diverse applications.
Head: <500 m
Capable of lifting water from deep wells or high-rise systems, providing reliable performance for challenging vertical pumping requirements.
Pressure: up to 2500 psi (76 kg/cm²)
Handles high-pressure operations safely, suitable for industrial plants, municipal networks, or seawater lifting.
Bowl Sizes: 6"–20"
Flexible bowl dimensions allow adaptation to different hydraulic conditions, optimizing flow efficiency for varied installations.
Motor Power: 5.5–720 kW
Offers a wide range of power options to match site-specific requirements, enabling energy-efficient operation and consistent performance.
Rated Voltage: 380 V, 460 V, 3 kV, 6 kV, 10 kV
Compatible with international power standards, allowing deployment in diverse regions and infrastructure setups.
Well Diameter: 100–750 mm
Designed to fit a wide range of well sizes, including narrow or deep wells, improving flexibility for urban, industrial, and agricultural projects.
Max. Discharge Diameter: 450 mm
Enables efficient high-volume discharge for municipal, industrial, and seawater applications, ensuring reliable water delivery.
Material Advantage: Stainless Steel Construction
Corrosion-resistant, hygienic, and durable, suitable for potable water, seawater, and industrial fluids, extending service life even under demanding conditions.

1.Discharge Pipe

Properly sized for optimum water velocities to insure peak hydraulic performance.

2.Discharge Bowl

Several discharge sizes available for NPT or flanged pipe.

3.Discharge Bearing

Extra long top protected bronze bearing insures positive shaft alignment and stabilization for extended life.

4.Intermediate Bowl

Close grained Class 30 cast iron. Water passage glassed formaximum efficiency and abrasion resistance.

5.Impellers

Designed for maximum efficiency with wide range hydraulic coverage. Precision balanced for smooth operation.

6.Upthrust Collar

Designed for extra margin of safety against possible momentary upthrust occurring at startup.

7.Intermediate Bowl Bearings

Reliable long life bronze or rubber bearing.

8.Lock Collets

Accurately machined to insure positive locking of impeller to pump shaft.

9.Pump Shaft

100,000 PSI high tensile stainless steel provides strength and excellent corrosion resistance. Ground and polished for smooth bearing surface.

10.Suction Inlet

Contoured for smooth flow entrance. Protected by an oversized stainless steel strainer to prevent entrance of damaging solids.

11.Suction Adapter

Ductile iron provides for increased strength and positive motor alignment. Open area permits easy access to pump/motor coupling.

12.Pump/Motor Coupling

Large stainless steel coupling accurately machined for perfect alignment, balance and power transmission. Submersible pumps and motors provide an extensive list of options versus other deep well pumping equipment systems. Advanced engineering designs and experience now assure units for long term pumping service. Water well applications provide the perfect opportunity to evaluate features and benefits of submersible equipment.

Wangyang Stainless Steel Submersible Turbine Pumps deliver precise hydraulic performance across a wide range of applications. Multiple pump sizes and motor configurations allow optimal matching to varying well conditions, flow rates, and discharge requirements. Adjustable voltage and specifications provide flexibility for customized installations, ensuring maximum system efficiency.

Additionally, a comprehensive selection of accessories, control systems, and high-quality power cables ensures smooth integration into any water supply or industrial network. This combination of flexibility, reliability, and precision makes Wangyang pumps a trusted solution for consistent, high-performance water transfer in municipal, industrial, and seawater applications.
